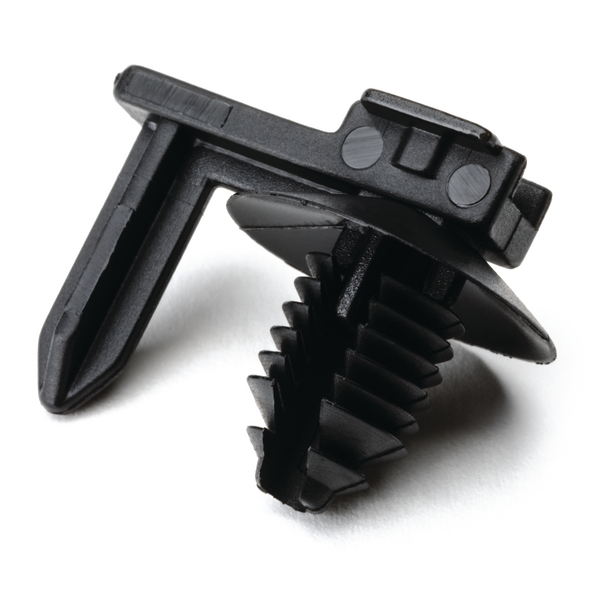

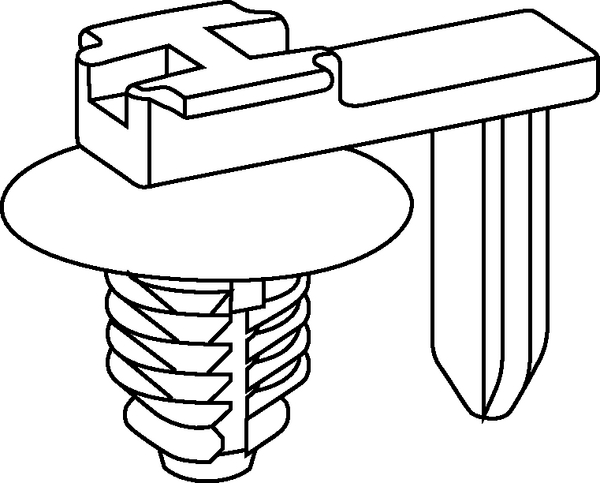

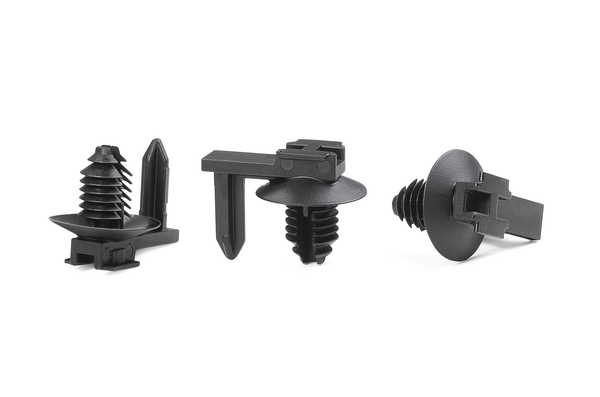

Connector clip for hole (round), black, 500pcs.
Art.-No. 151-00459 | FT6LG.JAE.CONNECT.TS-PA66HIRHS-BK |  Details

ConnectorClip for round holes with turn stop to avoid rotation, in line.

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • One fir tree foot part can be used for a variety of panel thicknesses
    • Disc covers the hole to prevent dirt and water gaining access
    • For twist protection: Variants with additional stick or for oval holes
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download Datasheet
    Application The connector clips used here have been designed for electronic cables and cable sets used in the automotive industry.
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Local order number FT6LG.JAE.CONNECT.TS-HIRHS-BK-D1
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION FT6LG.JAE.CONNECT.TS-PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in Bag
    Product Group Connector Clips for round holes
    Short Description Connector Clip, round hole 6.5 - 7.0 mm, fir tree, high impact modified, heat stabilised, black
    Type FT6LG.JAE.CONNECT.TS
    Disc ∅ 16mm
    Height (H) 17.9mm
    Length (L) 24.0mm
    Panel Thickness max. 0.7 - 5.1mm
    Weight/Unit 0.000801kg
    Width (W) 16.0mm
    for Hole ∅ (FH) 6.5 - 7.0 mm
    for Hole ∅ (FH2) 5.0mm
    for Panel Thickness min - max 0.7 - 5.1 mm
    CE Certification No
    CSA Certified No
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026273549
    Packaging 1 - Height (m) 0.035m
    Packaging 1 - Length (m) 0.22m
    Packaging 1 - Qty 500
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00208m³
    Packaging 1 - Weight (kg) 0.414362kg
    Packaging 1 - Width (m) 0.27m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 15000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 13.25086kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 180000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 180.06kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
