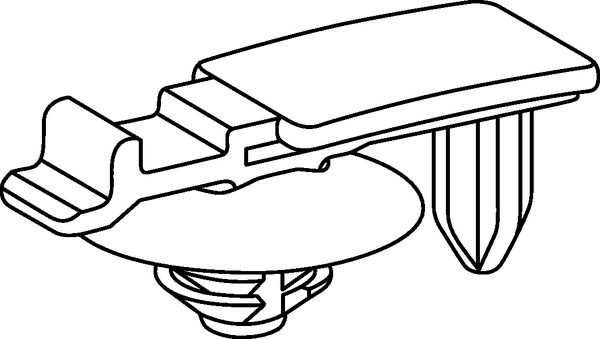

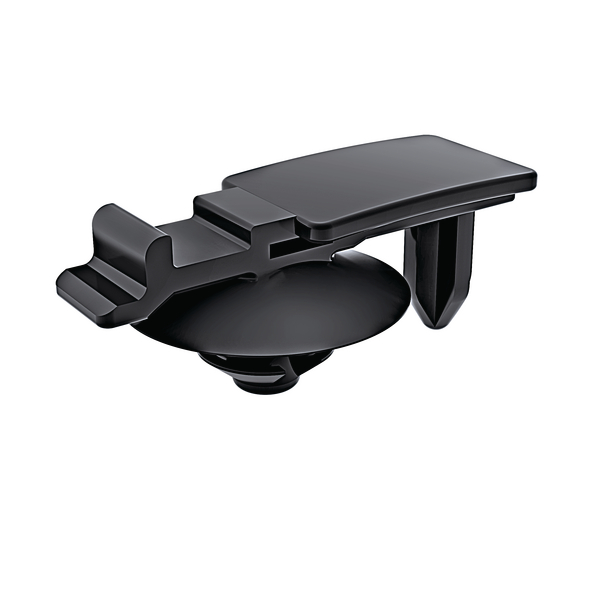

Connector clip for hole (round), black, 500pcs.
Art.-No. 155-43702
| FT6S-Y-CONN-TS-PA66HIRHS-BK
|
Details
- Connector easily installed by simply pushing into place
- Connection can be released (non-destructive)
- One fir tree foot part can be used for a variety of panel thicknesses
- Disc covers the hole to prevent dirt and water gaining access
- For twist protection: Variants with additional stick or for oval holes
Request your individual offer now
Request quote
More products in this product group:
| Application | The connector clips used here have been designed for electronic cables and cable sets used in the automotive industry. |
| Anti rotation (Yes / No) | YES |
| Colour | Black (BK) |
| Fixation Method | Fir Tree |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | FT6S-Y-CONN-TS-PA66HIRHS-BK |
| Pack Cont. | 500pcs. |
| Package Content packed in | Bag |
| Product Group | Connector Clips for round holes |
| Short Description | Connector Clip, round hole 6.5 - 7.0 mm, fir tree, high impact modified, heat stabilised, black |
| Type | FT6S-Y-CONN-TS |
Download
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026219646 |
| Packaging 1 - Height (m) | 0.025m |
| Packaging 1 - Length (m) | 0.23m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00161m³ |
| Packaging 1 - Weight (kg) | 0.391862kg |
| Packaging 1 - Width (m) | 0.28m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 15000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 12.57586kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 180000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 171.96kg |
| Packaging 4 - Width (m) | 0.8m |
