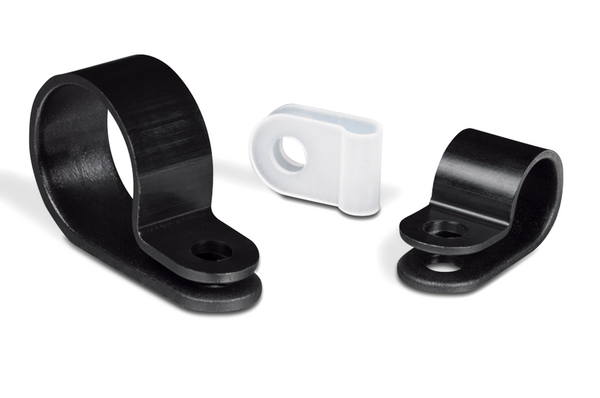

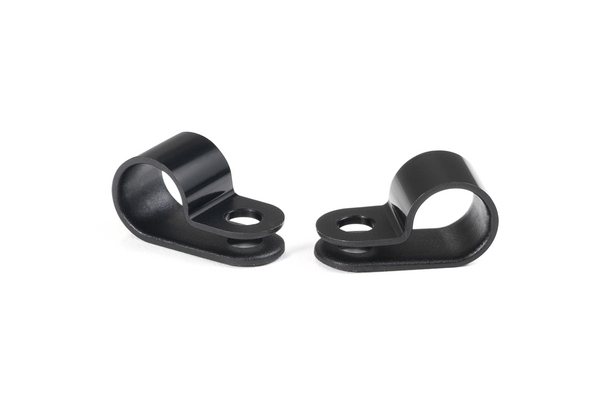

P-clamp closed, Dmax=3.2mm, ∅4.2 mm, natural, 1000pcs.
Art.-No. 211-60019
| H1P-PA66-NA
|
Details
- Manufactured from polyamide
- Good temperature resistance and high strength
- Wide range of sizes for every application
- Can be used without cable ties
Request your individual offer now
Request quote
More products in this product group:
| Application | For permanent or semi-permanent cable fixings this range of plastic P-Clamps can be used in many industries. Their light weight makes them particularly suitable for use in areas such as aircraft and aerospace where minimising weight, but retaining a strong fixing, is vitally important. |
| Colour | Natural (NA) |
| Fixation Method | screw-hole |
| Local order number | H1P.NN7P |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | H1P-PA66-NA |
| Pack Cont. | 1000pcs. |
| Package Content packed in | pcs. |
| Product Family | HP-Series |
| Product Group | Plastic P-Clamps |
| Short Description | Plastic P-Clip PA66 natural 3.2 mm |
| Type | H1P |
| Variant | Closed |
|
|

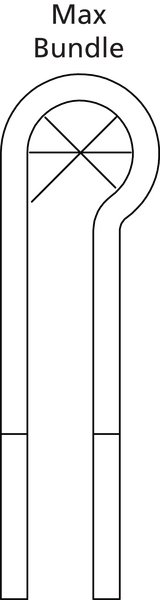

| Bundle Diameter max (metric) | 3.2mm |
| Bundle ∅ | 3.2mm |

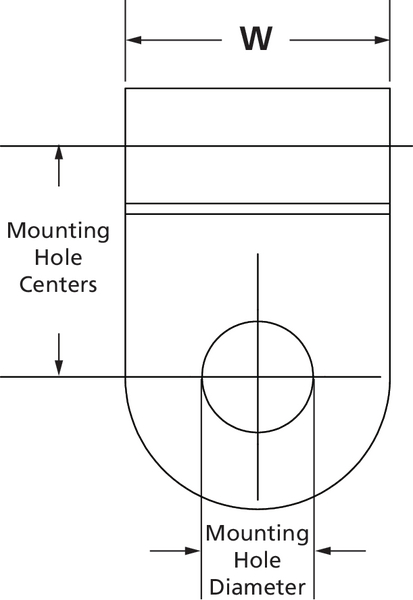

| Fixing Hole Centres (F) | 8.5mm |
| Fixing Hole Centres (F) (imperial) | 0.33" |
| Nominal ∅ | 3.2mm |
| Nominal ∅ (imperial) | 0.13" |

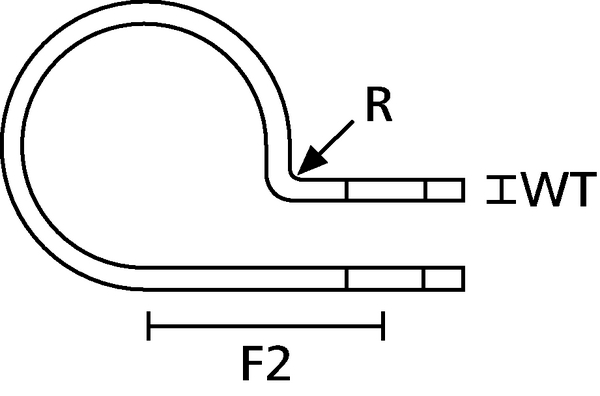

| Radius (R) | 0.5mm |
| Radius (R) (imperial) | 0.02" |
| Wall (WT) | 0.8mm |
| Wall (WT) (imperial) | 0.031" |
| Weight/Unit | 0.00023kg |

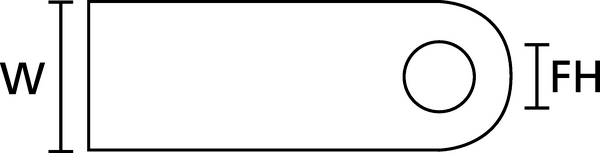

| Width (W) | 10.0mm |
| for Hole ∅ (FH) | 4.2 mm |
Download
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026129341 |
| Packaging 1 - Height (m) | 0.02m |
| Packaging 1 - Length (m) | 0.29m |
| Packaging 1 - Qty | 1000 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00131m³ |
| Packaging 1 - Weight (kg) | 0.243kg |
| Packaging 1 - Width (m) | 0.225m |
| Packaging 3 - Height (m) | 0.171m |
| Packaging 3 - Length (m) | 0.56m |
| Packaging 3 - Qty | 15000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0172m³ |
| Packaging 3 - Weight (kg) | 5.52217kg |
| Packaging 3 - Width (m) | 0.18m |
| Packaging 4 - Height (m) | 1.17m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 720000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.123m³ |
| Packaging 4 - Weight (kg) | 285.72kg |
| Packaging 4 - Width (m) | 0.8m |
