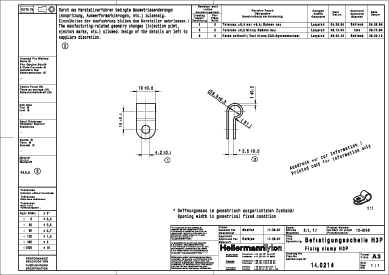

P-clamp closed, Dmax=6.5mm, ∅4.2 mm, natural, 1000pcs.
Art.-No. 211-60039
| H3P-PA66-NA
|
Details
- Manufactured from polyamide
- Good temperature resistance and high strength
- Wide range of sizes for every application
- Can be used without cable ties
Request your individual offer now
Request quote
More products in this product group:
| Application | For permanent or semi-permanent cable fixings this range of plastic P-Clamps can be used in many industries. Their light weight makes them particularly suitable for use in areas such as aircraft and aerospace where minimising weight, but retaining a strong fixing, is vitally important. |
| Colour | Natural (NA) |
| Fixation Method | screw-hole |
| Local order number | H3P.NN7P |
| Material | Polyamide 6.6 (PA66) |
| PART DESCRIPTION | H3P-PA66-NA |
| Pack Cont. | 1000pcs. |
| Package Content packed in | pcs. |
| Product Family | HP-Series |
| Product Group | Plastic P-Clamps |
| Short Description | Plastic P-Clip PA66 natural 6.5 mm |
| Type | H3P |
| Variant | Closed |
|
|
| Bundle Diameter max (metric) | 6.5mm |
| Bundle ∅ | 6.5mm |
| Fixing Hole Centres (F) | 10.0mm |
| Fixing Hole Centres (F) (imperial) | 0.39" |
| Nominal ∅ | 6.5mm |
| Nominal ∅ (imperial) | 0.25" |
| Radius (R) | 1.0mm |
| Radius (R) (imperial) | 0.04" |
| Wall (WT) | 1.0mm |
| Wall (WT) (imperial) | 0.039" |
| Weight/Unit | 0.000374kg |
| Width (W) | 10.0mm |
| for Hole ∅ (FH) | 4.2 mm |
Download
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026129396 |
| Packaging 1 - Height (m) | 0.03m |
| Packaging 1 - Length (m) | 0.285m |
| Packaging 1 - Qty | 1000 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00252m³ |
| Packaging 1 - Weight (kg) | 0.389kg |
| Packaging 1 - Width (m) | 0.295m |
| Packaging 3 - Height (m) | 0.171m |
| Packaging 3 - Length (m) | 0.56m |
| Packaging 3 - Qty | 8000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0172m³ |
| Packaging 3 - Weight (kg) | 3.847824kg |
| Packaging 3 - Width (m) | 0.18m |
| Packaging 4 - Height (m) | 1.171m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 384000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.124m³ |
| Packaging 4 - Weight (kg) | 205.512kg |
| Packaging 4 - Width (m) | 0.8m |
