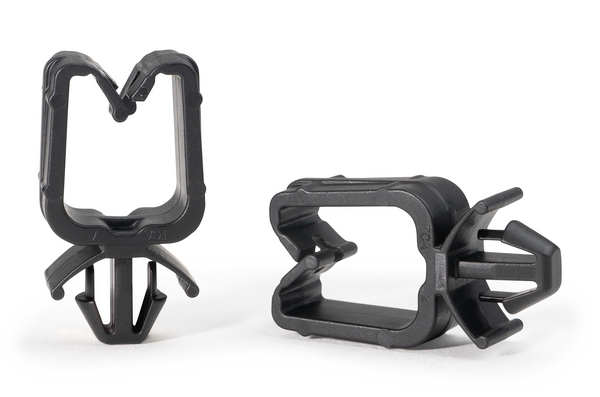

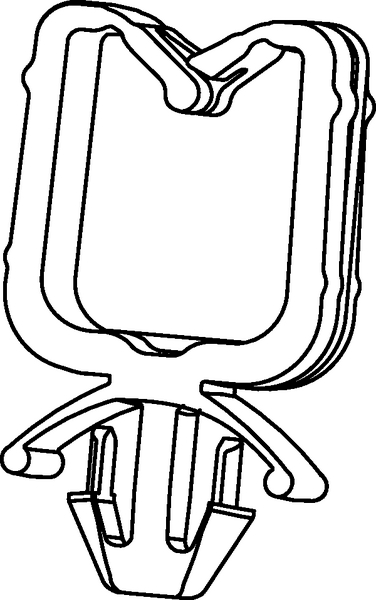

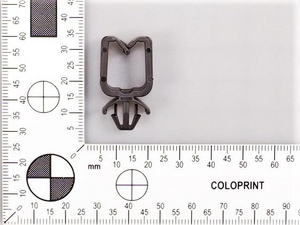

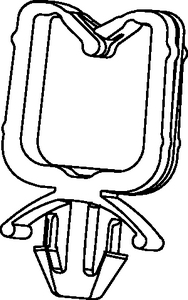

Cable clip for hole (round), T=1.0 - 3.0mm, ∅6.1 - 6.6 mm, Dmax=12.0mm
Art.-No. 151-03957 | HC10.5WPM6.3-PP-BK Details

  • Accept single or multiple wires
  • Simply push wires into place
  • Arrowhead design for simple and secure installation
  • Access to panel only needed from one side

Request your individual offer now

Application This fixing element is pressed into a hole manualy and locks into place with an audible click. Cable bundles can be applied afterwards.
Cable ∅ max 12.0mm
Colour Black (BK)
Fixation Method arrowhead
Local order number HC10.5WPM6.3-PA66/PP-BK
Material Polypropylene (PP)
PART DESCRIPTION HC10.5WPM6.3-PP-BK
Pack Cont. 1000pcs.

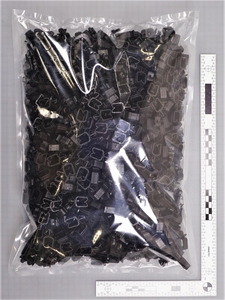

Package Content packed in Bag
Product Family with arrowhead
Product Group Fixing Elements for Tubes and Harnesses, for round holes
Type HC10.5WPM6.3
Bundle Diameter max (metric) 12.0mm
Bundle ∅ 12.0mm

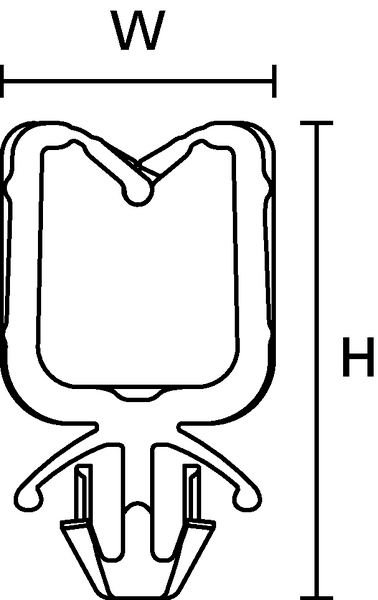

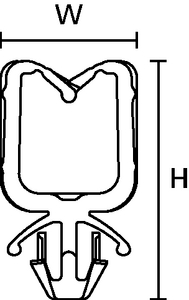

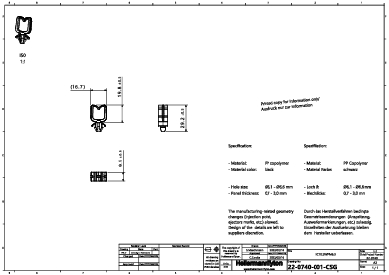

Height (H) 19.8mm
Height (H2) 9.4mm
Length (L) 16.7mm
Panel Thickness max. 1.0 - 3.0mm
Weight/Unit 0.001179kg
Width (W) 9.5mm
for Hole ∅ (FH) 6.1 - 6.6 mm
for Panel Thickness min - max 1 - 3 mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin PL
Customs Number 39269097
GTIN-13 / EAN 4031026697901
Packaging 1 - Height (m) 0.08m
Packaging 1 - Length (m) 0.37m
Packaging 1 - Qty 1000
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.0077
Packaging 1 - Weight (kg) 1.200815kg
Packaging 1 - Width (m) 0.26m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 9000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 11.627335kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 108000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 160.548kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
