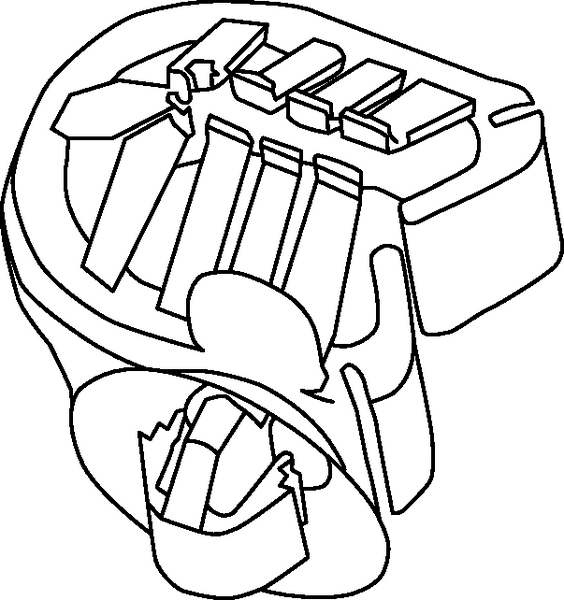

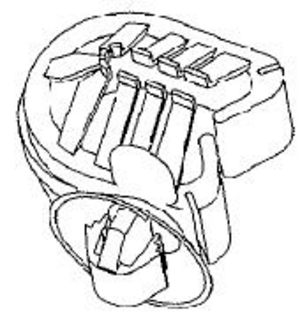

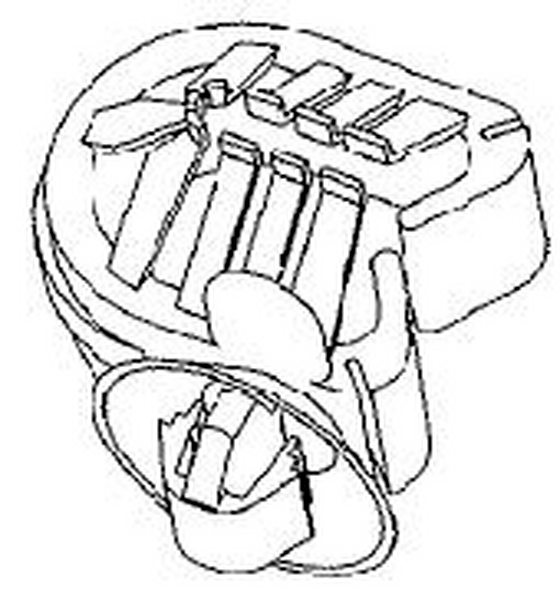

Cable clip for hole (oval), ∅6.2 x 12.2 mm, Dmin=3mm, Dmax=15mm
Art.-No. 151-00164 | HC90SFT62x122-PA6HIR-BK |  Details

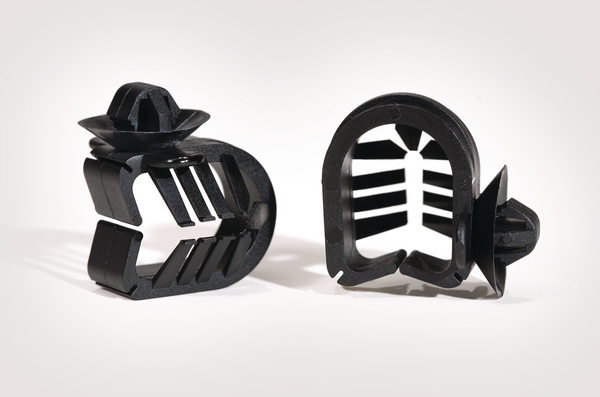

Harness clip HC90SFT for oval holes and varying bundle diameter.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application Offering a simple and secure method of attaching cables to panels. Originally designed for the automotive industry they are finding a wide variety of applications in all industries using sheet metal panels.
    Colour Black (BK)
    Fixation Method arrowhead
    Local order number 9626866880.N6HIR7P
    Material Polyamide 6, high impact modified (PA6HIR)
    PART DESCRIPTION HC90SFT62x122-PA6HIR-BK
    Pack Cont. 1000pcs.
    Package Content packed in Bag
    Product Family HC-Series for oval holes
    Product Group Fixing elements with arrowhead
    Type HC90SFT62x122
    Bundle Diameter max (metric) 15mm
    Bundle ∅ 3-15mm
    Bundle ∅ min. 3mm
    Disc ∅ 18mm
    Height (H) 28.4mm
    Length (L) 17mm
    for Hole ∅ (FH) 6.2 x 12.2 mm
    for Panel Thickness min - max 0.7 - 2.5 mm
    Flammability UL 94 HB
    Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
    Country of Origin FR
    GTIN-13 / EAN 4031026710624
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121702
