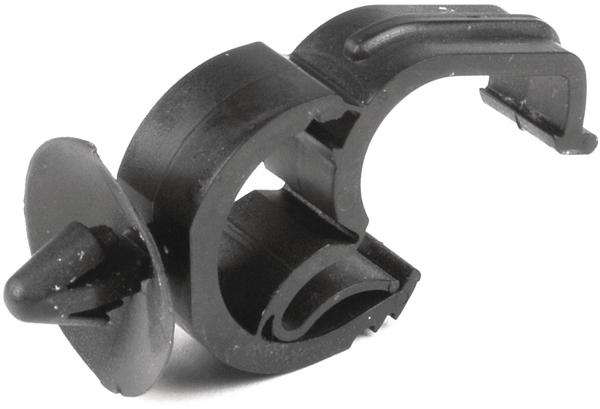

Cable clip for hole (round), ∅6.2 - 6.7 mm, Dmin=27.0mm, Dmax=36.0mm
Art.-No. 151-00382
| IAHC4AH-PA66HIRHS-BK
|
Details
- Push and click closure for fixing of wires
- AHC( )SS und AHC( )SB can be pushed onto a 5.0 mm stud
- Vibration resistant, rattlefree and secure hold of bundle
- In case of maintenance easy replacement of bundle possible
- 360 degree rotatable for guiding bundles in different directions
Request your individual offer now
Request quote
More products in this product group:
| Application | Offering a simple and secure method of attaching cables to panels. Originally designed for the automotive industry, these products are used in a wide range of applications with sheet metal panels across various industries. |
| Colour | Black (BK) |
| Key product features | lockable, for faster processing, vibration absorbing |
| Local order number | 17051 |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | IAHC4AH-PA66HIRHS-BK |
| Pack Cont. | 450pcs. |
| Package Content packed in | Carton |
| Product Family | IAHC-Series |
| Product Group | Fixing Elements for Tubes and Harnesses with Automatic Locking Feature, interconnectable |
| Short Description | Fixing Element 53x13.5 mm, push and click, high impact modified, heat stabilised, black |
| Type | IAHC4AH |
Download
|
|
|
| Country of Origin | FR |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026337623 |
| Packaging 3 - Height (m) | 0.3m |
| Packaging 3 - Length (m) | 0.4m |
| Packaging 3 - Qty | 450 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.036m³ |
| Packaging 3 - Weight (kg) | 4.995kg |
| Packaging 3 - Width (m) | 0.3m |
| Packaging 4 - Height (m) | 1.044m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 10800 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.002m³ |
| Packaging 4 - Weight (kg) | 140.88kg |
| Packaging 4 - Width (m) | 0.8m |
