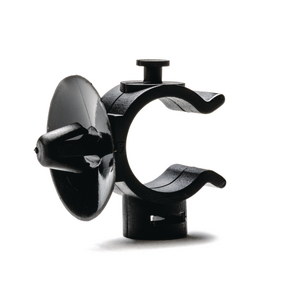

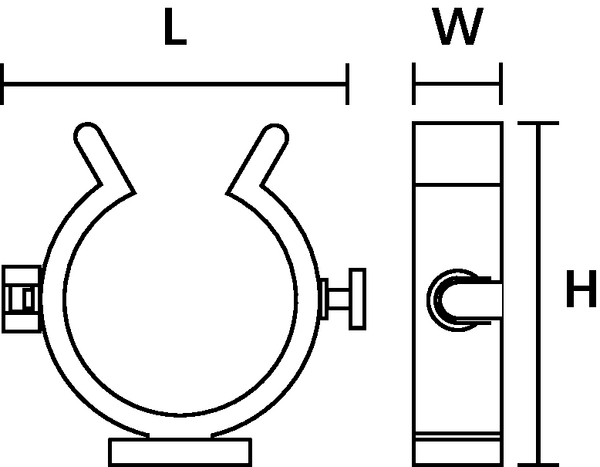

Cable clip for stud, ∅6.35 mm, Dmin=8.5mm, Dmax=12.5mm, ∅5.0 mm
Art.-No. 151-14400
| IPC10P-PA66HIR-BK
|
Details
- Attach before installing pipe or hose

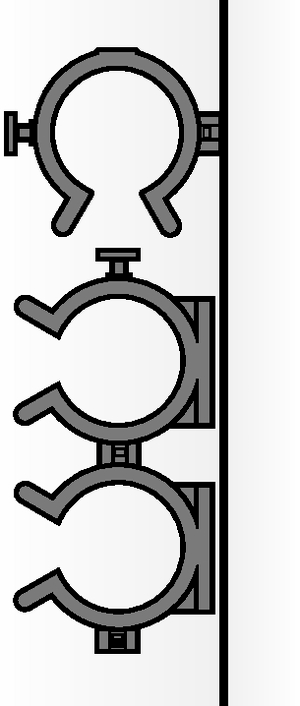

- Parts labelled 'I' are interlockable for more installation options
- Option to mount onto 5mm 'T' stud or IAHC type of Automatic Harness Clips
Request your individual offer now
Request quote

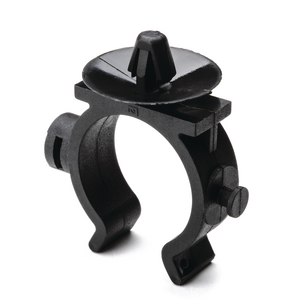

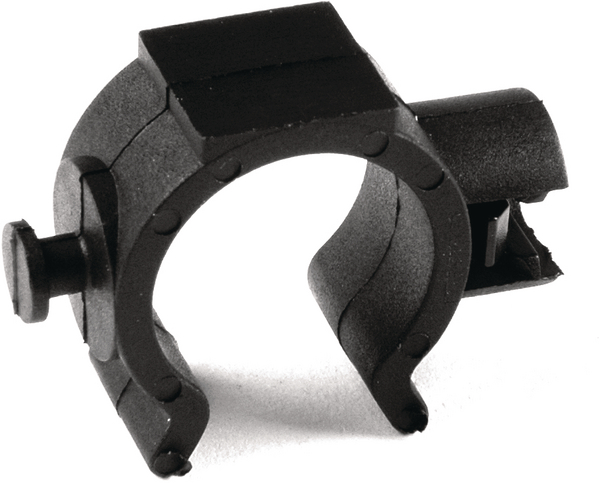

More products in this product group:
Application | Offering a simple and secure method of attaching pipes or hoses to panels. Originally designed for the automotive industry they are finding a wide variety of applications in all industries using sheet metal panels with studs or weld studs. The use of weld studs avoid the problems with 'holes' (ingress of moisture, corrosion etc.). |
Colour | Black (BK) |
Local order number | IPC10P.IB3P |
Material | Polyamide 6.6, high impact modified (PA66HIR) |
PART DESCRIPTION | IPC10P-PA66HIR-BK |
Pack Cont. | 100pcs. |
Package Content packed in | Bag |
Product Family | IPC-Series |
Product Group | Fixing Element for Tubes and Harnesses, interconnectable |
Short Description | Harness Clip 8.5-12.5 mm, parallel routing, open, black |
Type | IPC10P |
|
|
Country of Origin | GB |
Customs Number | 39269097 |
GTIN-13 / EAN | 5022660307928 |
Packaging 1 - Height (m) | 0.025m |
Packaging 1 - Length (m) | 0.203m |
Packaging 1 - Qty | 100 |
Packaging 1 - Type | Bag |
Packaging 1 - Volume (m³) | 0.00077m³ |
Packaging 1 - Weight (kg) | 0.15kg |
Packaging 1 - Width (m) | 0.152m |
Packaging 3 - Height (m) | 0.192m |
Packaging 3 - Length (m) | 0.586m |
Packaging 3 - Qty | 8000 |
Packaging 3 - Type | Box |
Packaging 3 - Volume (m³) | 0.0439m³ |
Packaging 3 - Weight (kg) | 12.802kg |
Packaging 3 - Width (m) | 0.39m |
Packaging 4 - Height (m) | 1.164m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 160000 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 1.117m³ |
Packaging 4 - Weight (kg) | 277.04kg |
Packaging 4 - Width (m) | 0.8m |
