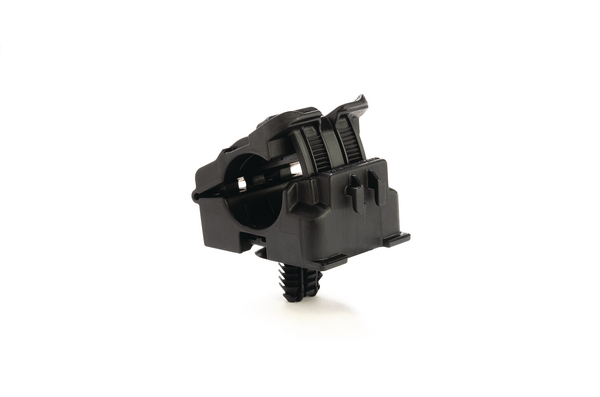

Cable clip, T=0.6 - 6.75mm, ∅7.0 x 12.0 mm, Dmin=12.70mm, Dmax=19.56mm
Art.-No. 156-02628
| IRCBFTOVAL-PA66HIRHSUV-BK
|
Details
- One-piece ratchet closure allows for easy installation during pre- or final assembly
- Easy release feature simplifies quick adjustments and maintenance
- Impact modified, heat and UV stabilized PA66 provides long-term durability, indoors and out
- High-performing oval fir trees ensure anti-twist protection
Request your individual offer now
Request quote
More products in this product group:

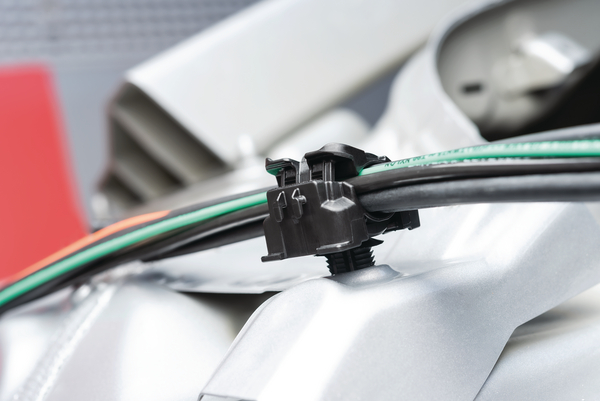

| Application | The In-line Ratchet P-Clamp family offers versatility when managing wires, cables and hoses. The robust design and durable materials make it ideal for heavy duty applications, both indoors and out. The adjustable clamp can be closed by hand to the desired diameter. The release feature allows easy and nondestructive removal of cables simply by using a flat-head screwdriver. In this way, the clamp can be reused or serviced without removing it from the mounting surface. |
| Colour | Black (BK) |
| Fixation Method | Fir Tree for oval holes |
| Local order number | 156-02628 |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | IRCBFTOVAL-PA66HIRHSUV-BK |
| Pack Cont. | 250pcs. |
| Package Content packed in | Bag |
| Product Family | In-Line Ratchet P-Clamp, B-Series |
| Product Group | Fixing elements with fir tree for oval holes |
| Type | IRCBFTOVAL |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C, (+105 °C for 500 h) |
| ROHS compliant | Yes |
| Reusable (Yes/No) | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | Yes |
|
|
|
| Country of Origin | MX |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026689296 |
| Packaging 3 - Height (m) | 0.20955m |
| Packaging 3 - Length (m) | 0.517525m |
| Packaging 3 - Qty | 250 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0344m³ |
| Packaging 3 - Weight (kg) | 4.61kg |
| Packaging 3 - Width (m) | 0.3175m |
| Packaging 4 - Height (m) | 1.194m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 5000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.146m³ |
| Packaging 4 - Weight (kg) | 113.2kg |
| Packaging 4 - Width (m) | 0.8m |
