22/12/2024

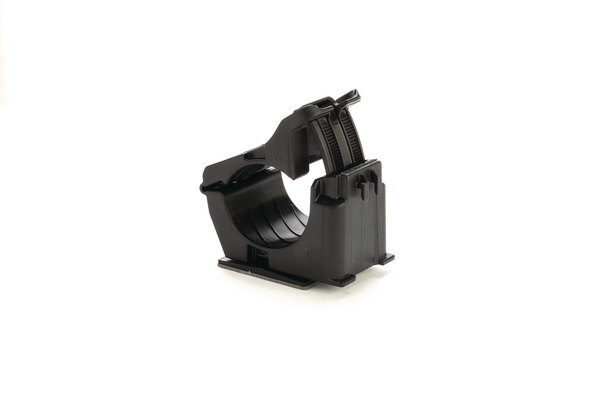

Cable clip, Dmin=19.30mm, Dmax=36.01mm
Art.-No. 156-02644 | IRCCMB5A-PA66HIRHSUV-BK |  Details

    • One-piece ratchet closure allows for easy installation during pre- or final assembly
    • Easy release feature simplifies quick adjustments and maintenance
    • Impact modified, heat and UV stabilized PA66 provides long-term durability, indoors and out
    • Adhesive on base creates an incredible bond with mounting surface
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application The In-line Ratchet P-Clamp family offers versatility when managing wires, cables and hoses. The robust design and durable materials make it ideal for heavy duty applications, both indoors and out. The adjustable clamp can be closed by hand to the desired diameter. The release feature allows easy and nondestructive removal of cables simply by using a flat-head screwdriver. In this way, the clamp can be reused or serviced without removing it from the mounting surface.
    Colour Black (BK)
    Fixation Method adhesive
    Local order number 156-02644
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION IRCCMB5A-PA66HIRHSUV-BK
    Pack Cont. 250pcs.
    Package Content packed in Bag
    Product Family In-Line Ratchet P-Clamp, C-Series
    Product Group Self-adhesive mount
    Type IRCCMB5A
    Bundle Diameter max (metric) 36.01mm
    Bundle ∅ 19.30-36.01mm
    Bundle ∅ min. 19.30mm

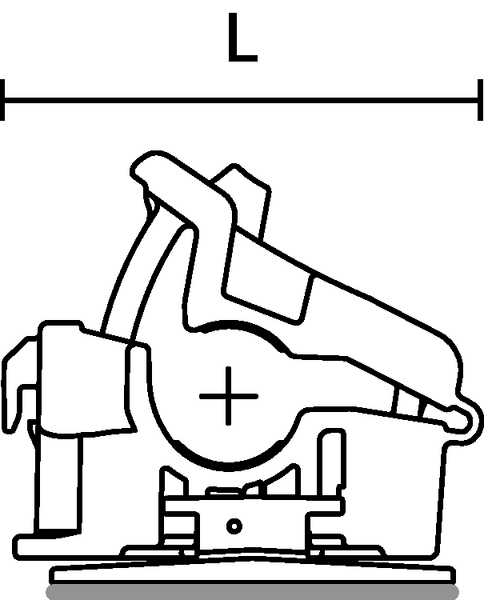

    Length (L) 34.8mm
    Min.Tensile Strength 445N
    Width (W) 34.9mm
    Adhesive Acrylic
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026689319
    Packaging 3 - Height (m) 0.37465m
    Packaging 3 - Length (m) 0.59055m
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0646m³
    Packaging 3 - Width (m) 0.2921m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
    Ratchet P Clamp Ratchet P Clamp

    Ratchet P-Clamp for mounting cables and hoses

    Discover the versatile addition to our range of metal and plastic cable clamps: the Ratchet P-Clamp. The innovative design makes it possible to fix wires, cables, hoses and pipes on a single mounting point in two separate work steps. Installers and maintenance engineers no longer have to hold the bundle and the clamp awkwardly in one hand whilst fixing them securely with the other.
