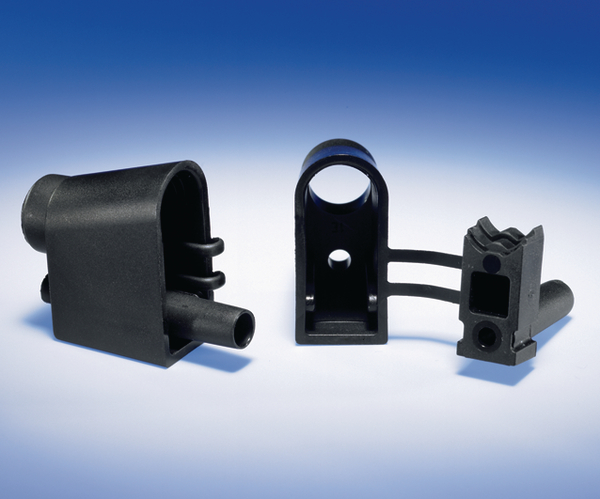

Cable clip for screw fixation, ∅5.3 mm, Dmin=6.0mm, Dmax=8.5mm
Art.-No. 231-10200 | KB2-PA66-BK |  Details

    • Acting as both a bush to protect the cable and a stress relief to avoid pulling the wires from their connections
    • Simply installed using just 1 screw
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application Ideal for use in domestic appliances to protect and fix cables on entry into the appliance.
    Colour Black (BK)
    Local order number KB2.NB3P
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION KB2-PA66-BK
    Pack Cont. 100pcs.
    Package Content packed in pcs.
    Type KB2

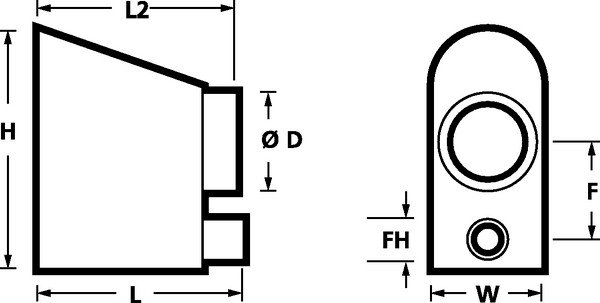

    Bundle Diameter max (metric) 8.5mm
    Bundle ∅ 6.0-8.5mm
    Bundle ∅ min. 6.0mm
    Diameter (D) 12.6mm
    Fixing Hole Centres (F) 12.7mm
    Height (H) 31.1mm
    Length (L) 26.4mm
    Length (L2) 26.4mm
    Weight/Unit 0.0022kg
    Width (W) 14.3mm
    for Hole ∅ (FH) 5.3 mm
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 39269097
    GTIN-13 / EAN 5022660021459
    Packaging 1 - Qty 100
    Packaging 1 - Type Bag
    Packaging 1 - Weight (kg) 0.220001kg
    Packaging 3 - Height (m) 0.192m
    Packaging 3 - Length (m) 0.586m
    Packaging 3 - Qty 1000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0439m³
    Packaging 3 - Weight (kg) 3.00201kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 20000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 81.04kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121702
