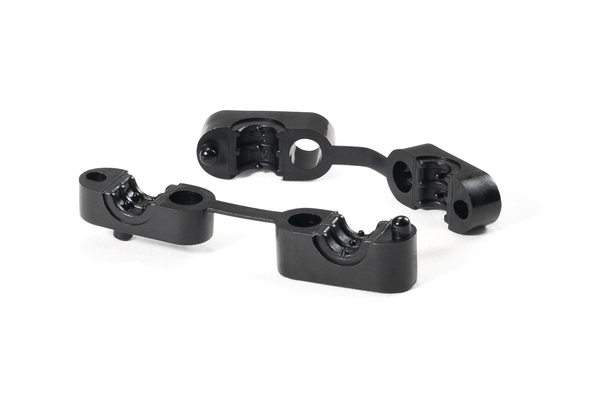

Cable clip for hole (round), ∅5.0 mm, Dmin=6.5mm, Dmax=7.7mm
Art.-No. 234-10300
| KK3-PA6HIR-BK
|
Details

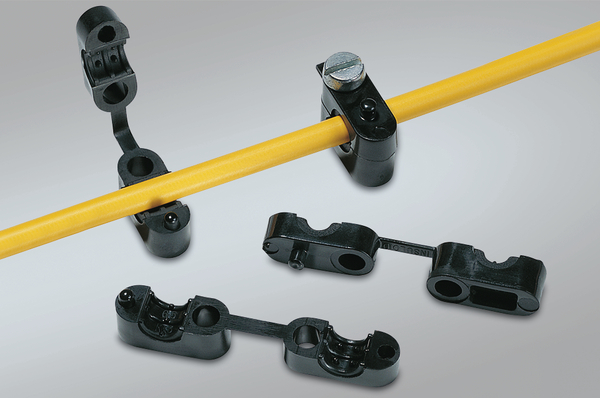

- Simple 1-screw fixing to guide and secure leads
- Two halves of the clip are linked to ensure no loss of parts during re-wiring
- Anti-rotation pin prevents leads from twisting
Request your individual offer now
Request quote
More products in this product group:

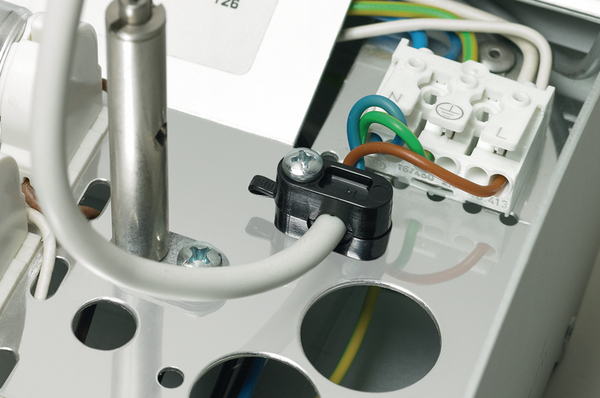

| Application | Strain relief clips for gripping cables up to 8.5 mm bundle diameter. Strain relief clip is simply attached to mounting surface with an M4 fixing screw. |
| Colour | Black (BK) |
| Fixation Method | screw-hole |
| Local order number | KK3.NB6P |
| Material | Polyamide 6, high impact modified (PA6HIR) |
| PART DESCRIPTION | KK3-PA6HIR-BK |
| Pack Cont. | 500pcs. |
| Package Content packed in | pcs. |
| Product Family | Klam-Klip (KK) |
| Product Group | Strain relief clips |
| Short Description | Strain Relief Clip black |
| Type | KK3 |
| Variant | Closed |
|
|
| Bundle Diameter max (metric) | 7.7mm |
| Bundle ∅ | 6.5-7.7mm |
| Bundle ∅ min. | 6.5mm |

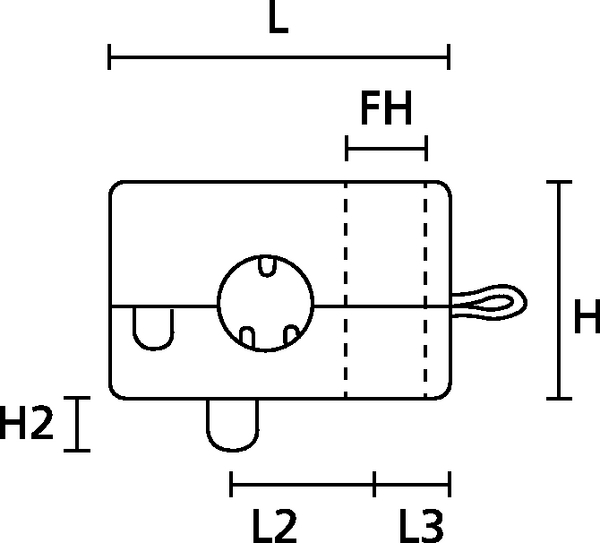

| Fixing Hole Centres (F) | 10.0mm |
| Fixing Hole Centres (F2) | 10.0mm |
| Fixing Hole Centres (F3) | 4.5mm |
| Height (H) | 14.0mm |
| Height (H2) | 3.5mm |
| Length (L) | 22.0mm |
| Length (L2) | 10.0mm |
| Nominal ∅ | 7.0mm |
| Weight/Unit | 0.0018kg |

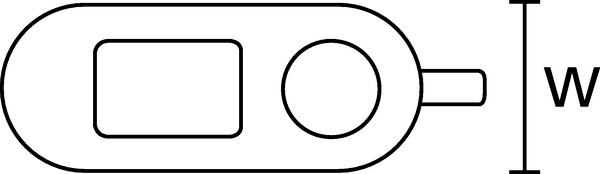

| Width (W) | 8.8mm |
| for Hole ∅ (FH) | 5.0 mm |
Download
|
|
|
| Country of Origin | FR |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 5022660308833 |
| Packaging 1 - Height (m) | 0.22m |
| Packaging 1 - Length (m) | 0.15m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.01089m³ |
| Packaging 1 - Weight (kg) | 0.900001kg |
| Packaging 1 - Width (m) | 0.33m |
| Packaging 3 - Height (m) | 0.345m |
| Packaging 3 - Length (m) | 0.38m |
| Packaging 3 - Qty | 6000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.0498m³ |
| Packaging 3 - Weight (kg) | 11.420012kg |
| Packaging 3 - Width (m) | 0.38m |
| Packaging 4 - Height (m) | 1.179m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 108000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.132m³ |
| Packaging 4 - Weight (kg) | 226.56kg |
| Packaging 4 - Width (m) | 0.8m |
