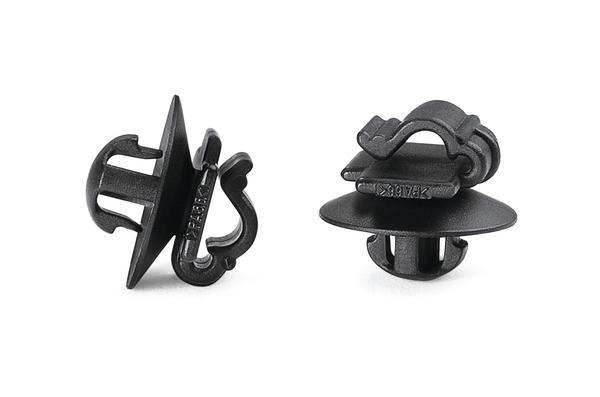

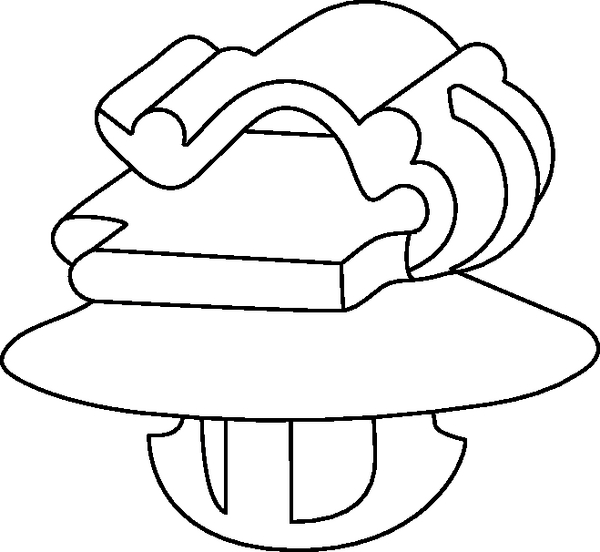

Cable clip for hole (round), ∅6.3 - 6.7 mm
Art.-No. 151-01843
| KSFT6.5OC1-3-PA66HIRHS-BK
|
Details
- Fixing part with rounded arrowhead to minimise assembly height
- Ideal for applications where space is limited
- Simply clip on a wire or hose
- Bundle diameter is defined
- Suitable for post-installation of bundles
Request your individual offer now
Request quote
More products in this product group:
| Application | This fixing elements can be used ideally everywhere where space saving work is necessary. In case of maintenance, the tubes and harnesses can be exchanged. |
| Colour | Black (BK) |
| Fixation Method | arrowhead |
| Key product features | for narrow space, for narrow bundling, reusable |
| Local order number | KSFT6.5OC1-3_PA66HIRHS_BK_ND1 |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | KSFT6.5OC1-3-PA66HIRHS-BK |
| Pack Cont. | 2500pcs. |
| Package Content packed in | Bag |
| Product Family | KSFT6.5OC1-3 with arrowhead for bundle diameter 1.0 - 3.0 mm |
| Product Group | Fixing elements for tubes and harnesses |
| Short Description | Harness Clip, open, round hole 6.3 - 6.7 mm, arrow head, high impact modified, heat stabilised, black |
| Type | KSFT6.5OC1-3 |
Download
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026573779 |
| Packaging 1 - Height (m) | 0.15m |
| Packaging 1 - Length (m) | 0.4m |
| Packaging 1 - Qty | 2500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.018m³ |
| Packaging 1 - Weight (kg) | 1.619493kg |
| Packaging 1 - Width (m) | 0.3m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 20000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 13.775944kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 240000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 186.312kg |
| Packaging 4 - Width (m) | 0.8m |
