22/12/2024

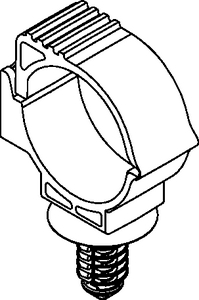

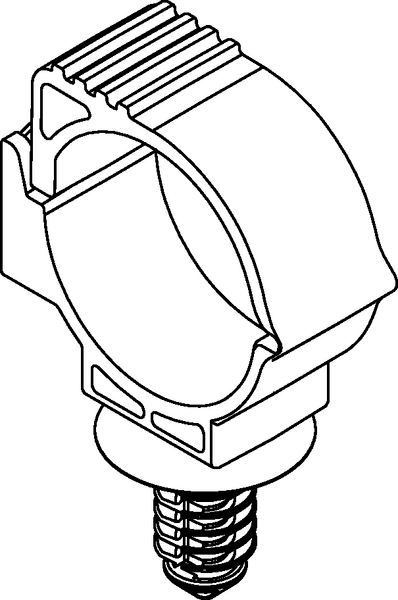

Cable clip for hole (round), T=0.6 - 8.25mm, ∅6.1 - 6.6 mm (hexagonal)/6.1 - 7.0 mm, Dmin=15.0mm, Dmax=19.0mm
Art.-No. 151-01023 | LOC15-19FT6LG2-PA66HIRHSUV-BK |  Details

Locking clamp creates a full and secure lock completely around a wire bundle ranging from 5-25 mm.

    • For fixing and bundling convoluted tubes and pipes
    • Suitable for nearly every application
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry.
    Colour Black (BK)
    Fixation Method Fir Tree
    Key product features lockable
    Local order number 151-01023
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION LOC15-19FT6LG2-PA66HIRHSUV-BK
    Pack Cont. 2000pcs.
    Package Content packed in Carton
    Product Family LOC-Series
    Product Group Fixing Elements for Tubes and Pipes
    Short Description Harness Clip, close, round hole 6.1 - 6.9 mm, fir tree, high impact modified, heat and UV-stabilised, black
    Type LOC15-19FT6LG2
    Bundle Diameter max (metric) 19.0mm
    Bundle ∅ 15.0-19.0mm
    Bundle ∅ min. 15.0mm
    Height (H) 65.27mm
    Length (L) 42.42mm
    Panel Thickness max. 0.6 - 8.25mm
    Width (W) 12.0mm
    for Hole ∅ (FH) 6.1 - 6.6 mm (hexagonal), 6.1 - 7.0 mm
    for Panel Thickness min - max 0.6 - 8.3 mm
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026491486
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.60801m
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0506m³
    Packaging 3 - Weight (kg) 7.3kg
    Packaging 3 - Width (m) 0.39688m
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121717
