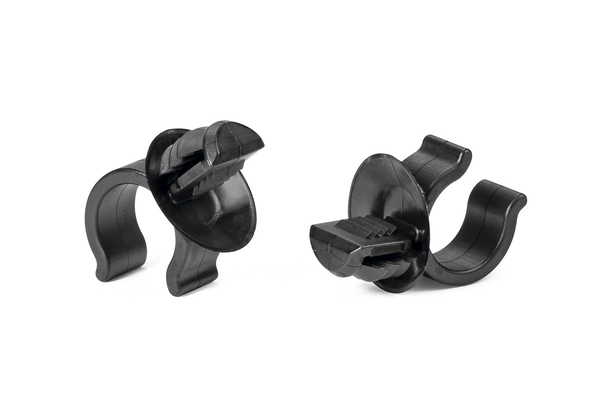

Cable clip, T=0.9 - 1.1mm, ∅10.8 - 11.2 mm
Art.-No. 151-03276 | OC10FT6CW-PA66HIRHS-BK |  Details

HarnessClip with fir tree for semicircular holes (poka yoke).

    • For fixing and bundling convoluted tubes and pipes
    • Suitable for nearly every application
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry.
    Cable ∅ max 11.35mm
    Cable ∅ min 10.65mm
    Colour Black (BK)
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION OC10FT6CW-PA66HIRHS-BK
    Pack Cont. 1100pcs.
    Package Content packed in Bag
    Type OC10FT6CW

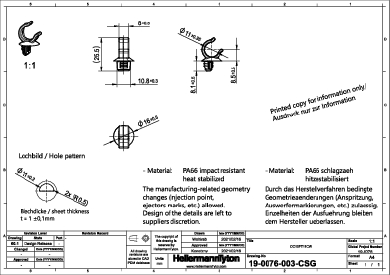

    Attach to Ø 10.65 - 11.35
    Disc ∅ 16.0mm
    Height (H) 25.5mm
    Panel Thickness max. 0.9 - 1.1mm
    Weight/Unit 0.0009kg
    Width (W) 8.0mm
    for Hole ∅ (FH) 10.8 - 11.2 mm
    for Panel Thickness min - max 0.9 - 1.1 mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026647975
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.3m
    Packaging 1 - Qty 1100
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.01845m³
    Packaging 1 - Weight (kg) 1.011815kg
    Packaging 1 - Width (m) 0.41m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 15400
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 14.98541kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 184800
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 200.856kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121702
