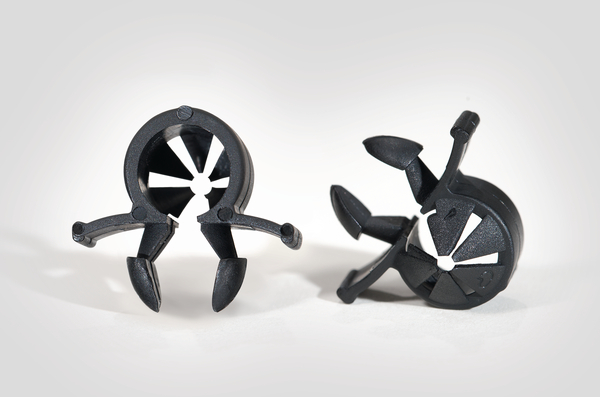

Cable clip for hole (round), ∅6.5 mm, Dmin=4.5mm, Dmax=16mm
Art.-No. 151-00335 | OHC16-PA66HIRHS-BK |  Details

Harness clip OHC8 for pre assembling on harnesses.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application Offering a simple and secure method of attaching cables to panels. Originally designed for the automotive industry they are finding a wide variety of applications in all industries using sheet metal panels.
    Colour Black (BK)
    Fixation Method arrowhead
    Local order number 14022
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION OHC16-PA66HIRHS-BK
    Pack Cont. 2000pcs.
    Package Content packed in Carton
    Product Family OHC-Series - OHC16 for a maximum bundle diameter of 16 mm
    Product Group Fixing elements with arrowhead
    Type OHC16
    Bundle Diameter max (metric) 16mm
    Bundle ∅ 4.5-16mm
    Bundle ∅ min. 4.5mm

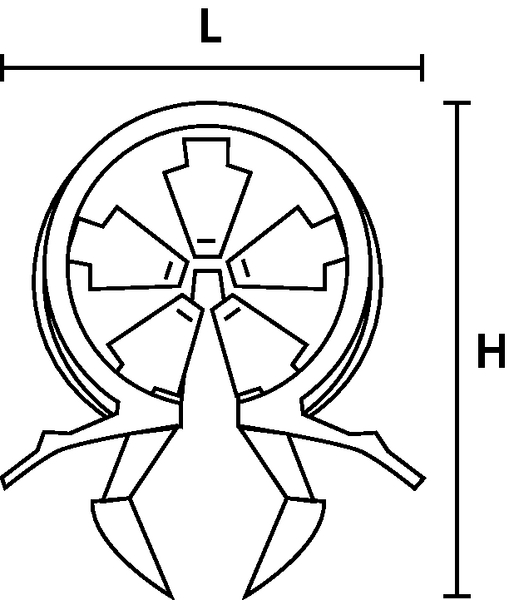

    Height (H) 29.5mm
    Length (L) 23.5mm

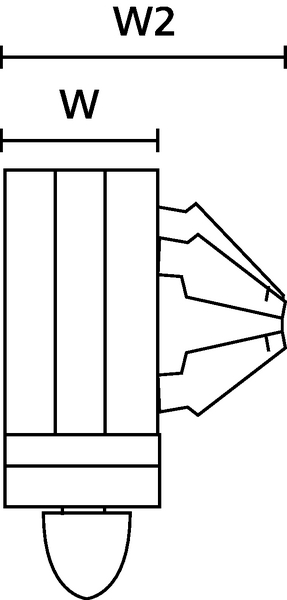

    Width (W) 16.8mm
    Width (W2) 8.0mm
    for Hole ∅ (FH) 6.5 mm
    for Panel Thickness min - max 0.6 - 2 mm
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C, (+125°C, 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin FR
    GTIN-13 / EAN 4031026710693
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121702
