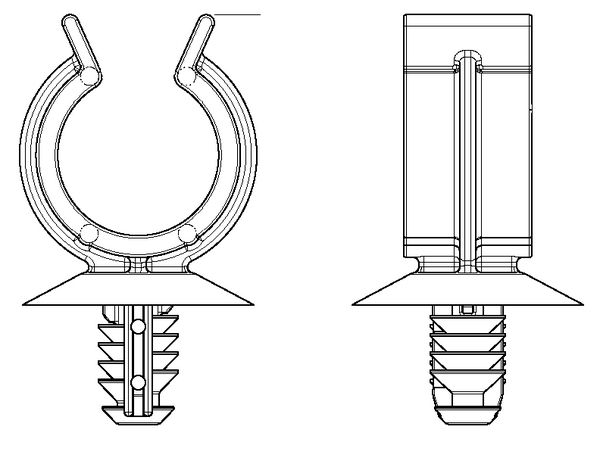

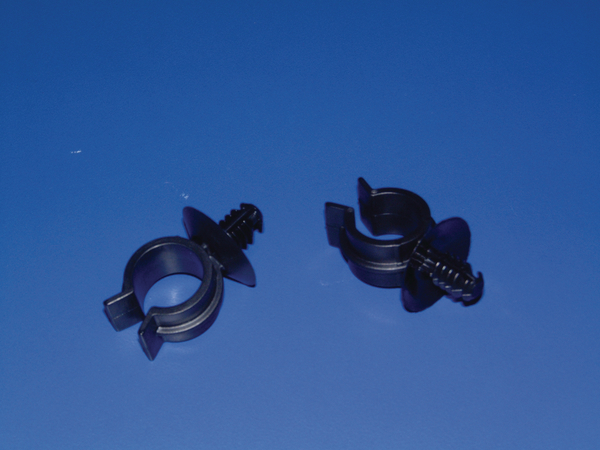

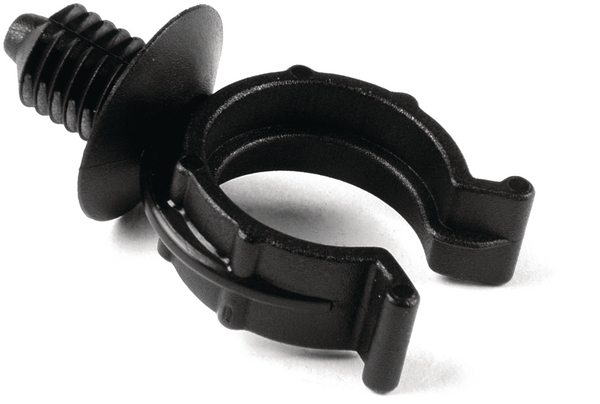

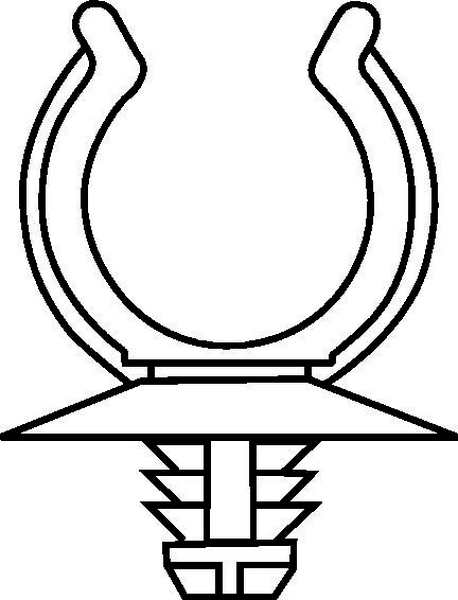

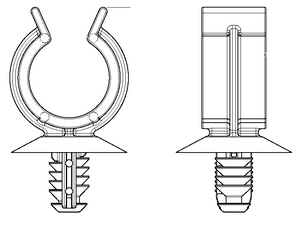

Cable clip, T=1.0 - 6.0mm, ∅6.4 - 6.8 mm, Dmax=15.7mm
Art.-No. 151-14303 | PC15FT7-PA66HIRHSUV-BK |  Details

PC15FT7 for simple and secure installation of corrugated tubing.

    • For fixing and bundling convoluted tubes and pipes
    • Suitable for nearly every application
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download Datasheet

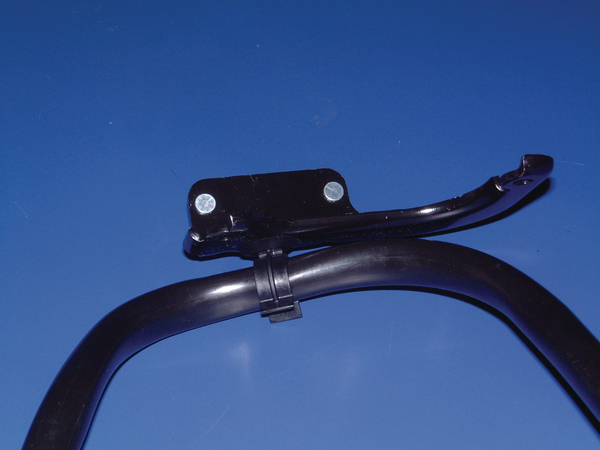

    Application These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry.
    Colour Black (BK)
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION PC15FT7-PA66HIRHSUV-BK
    Pack Cont. 1000pcs.
    Package Content packed in Bag
    Product Family PC-Series with Firtree
    Short Description Harness Clip, open, round hole 6.4 - 6.8 mm, fir tree, high impact modified, heat and UV-stabilised, black
    Type PC15FT7
    Bundle Diameter max (metric) 15.7mm
    Bundle ∅ 15.7mm
    Disc ∅ 21.6mm
    Height (H) 38.1mm
    Height (H2) 26.7mm
    Length (L) 15.75mm
    Panel Thickness max. 1.0 - 6.0mm
    Weight/Unit 0.001kg
    Width (W) 21.6mm
    for Hole ∅ (FH) 6.4 - 6.8 mm
    for Panel Thickness min - max 1 - 6 mm
    CE Certification No
    CSA Certified No
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026312408
    Packaging 3 - Height (m) 0.2159m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Qty 5000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.052m³
    Packaging 3 - Weight (kg) 5.86kg
    Packaging 3 - Width (m) 0.396875m
    Packaging 4 - Height (m) 1.224m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 75000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.175m³
    Packaging 4 - Weight (kg) 108.9kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121717
