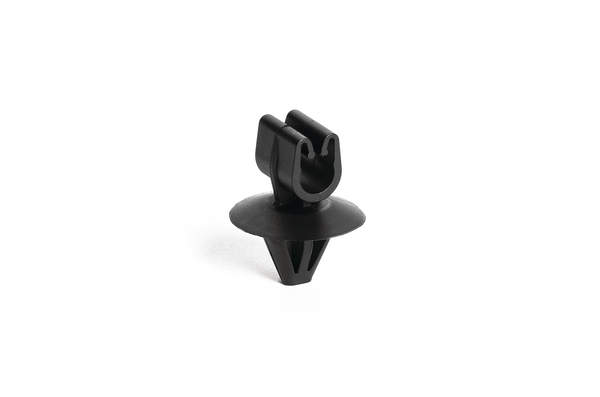

Cable clip for hole (round), T=1.2 - 1.6mm, ∅6.1 - 6.9 mm/6.35 mm (hexagonal), Dmin=4.5mm, Dmax=4.9mm
Art.-No. 133-03178 | PC5AH6.5-PA66HIRHSUV-BK |  Details

    • Fixing elements with fir tree or arrow head
    • Simply clip on a wire or hose
    • Clips to be attached into bore hole
    • Bundles can be released at any time
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application Originally designed for the automotive industry they are finding a wide and time saving variety of applications in all industries and where the use of a cable is not possible.
    Colour Black (BK)
    Fixation Method arrowhead
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION PC5AH6.5-PA66HIRHSUV-BK
    Pack Cont. 4000pcs.
    Package Content packed in Carton
    Product Group Fixing elements for tubes and harnesses
    Type PC5AH6.5
    Attach to Ø 4.7
    Bundle Diameter max (metric) 4.9mm
    Bundle ∅ 4.5-4.9mm
    Bundle ∅ min. 4.5mm
    Disc ∅ 17.0mm
    Height (H) 21.5mm
    Length (L) 17.0mm
    Panel Thickness max. 1.2 - 1.6mm
    Width (W) 10.0mm
    for Hole ∅ (FH) 6.1 - 6.9 mm, 6.35 mm (hexagonal)
    for Panel Thickness min - max 1.2 - 1.6 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026588773
    Packaging 3 - Height (m) 0.1603502m
    Packaging 3 - Length (m) 0.5159502m
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0282m³
    Packaging 3 - Width (m) 0.3413252m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121717
