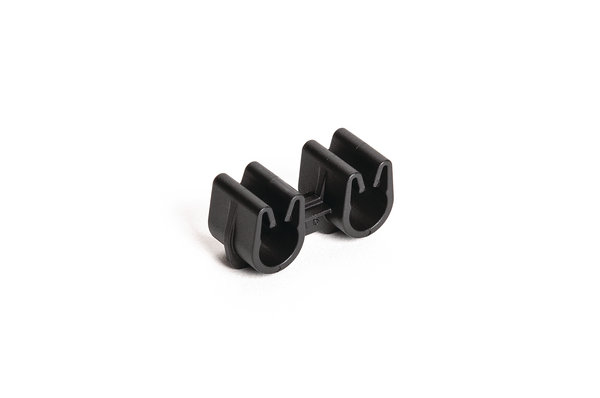

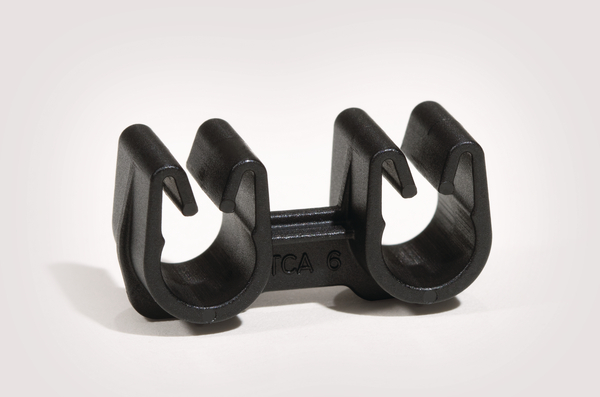

Cable clip
Art.-No. 133-03187 | PC6.5X2-PA66HIRHSUV-BK |  Details

PC6_5X2

    • For parallel routing of tubes, hoses or pipes
    • Prevents the twisting of tubes or harnesses
    • Simple manual installation
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application Designed for the parallel routing of multiple tubes and harnesses. Simple manual assembly into the clip for a firm and secure hold of the bundle. Prevents easily the twisting of tubes or harnesses.
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION PC6.5X2-PA66HIRHSUV-BK
    Pack Cont. 3000pcs.
    Package Content packed in Carton
    Type PC6.5X2
    Height (H) 12.0mm
    Length (L) 25.25mm
    Nominal ∅ 6.35mm
    Width (W) 10.16mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026588865
    Packaging 3 - Height (m) 0.1603502m
    Packaging 3 - Length (m) 0.5159502m
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.0282m³
    Packaging 3 - Width (m) 0.3413252m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121717
