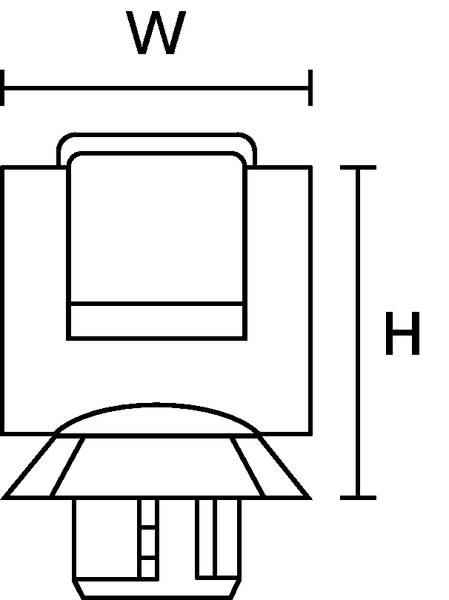

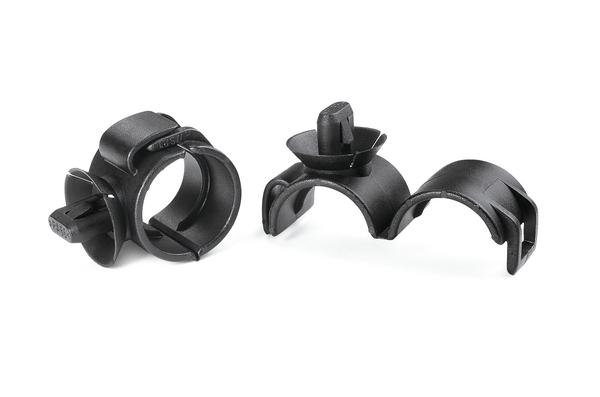

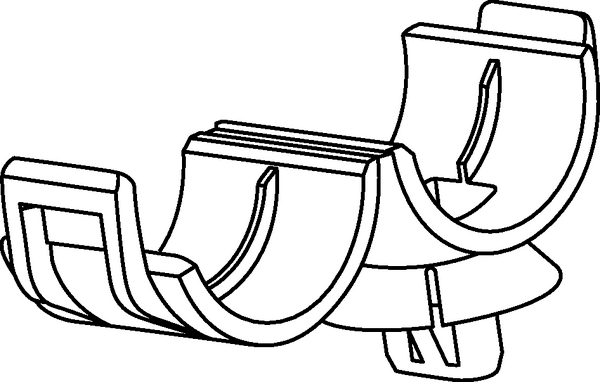

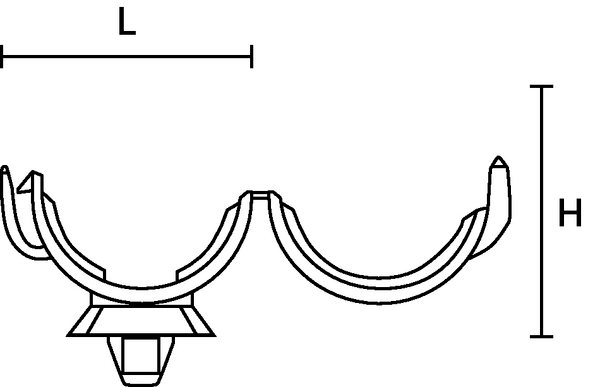

Corrugated tube clip for hole (oval), nom∅21.0mm, black, 100pcs.
Art.-No. 150-92300
| RCC D21-PA66HIRHS-BK
|
Details

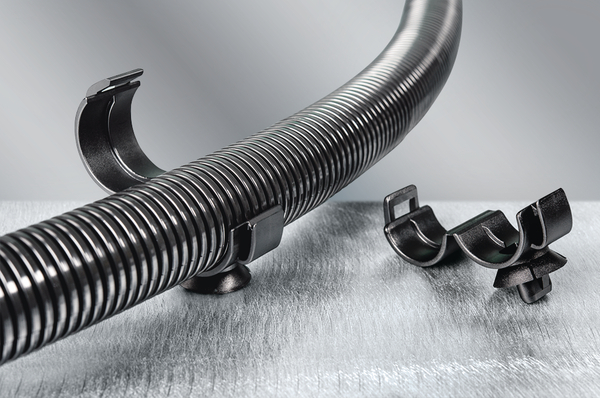

- Clamps for corrugated tubing for a variety of nominal diameters
- Arrowhead simply locks into place
- Tube is guided accurately by clicking
- Axial slipping is prevented by the inside profile of the clamp
- Type RCCD for oval holes 6.2 x 12.2 mm
- CTC-L profile clamp can also fastened to a metal edge
Request your individual offer now
Request quote
More products in this product group:
| Application | These clamps are used in the automotive industry, in the production of cable harnesses and in the electrical industry. Their quick and easy mounting is the reason for their universal success wherever corrugated tubing and pipes have to be fixed quickly and securely. |
| Colour | Black (BK) |
| Fixation Method | with Arrowhead / Push Mount (Mounts) |
| Key product features | for convoluted tubes or with rib |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | RCC D21-PA66HIRHS-BK |
| Pack Cont. | 100pcs. |
| Package Content packed in | Bag |
| Product Group | Fixing Elements for Corrugated Tubing, with Arrowhead |
| Short Description | Fixing Element with Arrowhead, high impact modified, heat stabilised, black |
| Type | RCC D21 |
Download
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026217451 |
| Packaging 1 - Height (m) | 0.3m |
| Packaging 1 - Length (m) | 0.625m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0825m³ |
| Packaging 1 - Weight (kg) | 0.533478kg |
| Packaging 1 - Width (m) | 0.44m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 11.48956kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 24000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 158.76kg |
| Packaging 4 - Width (m) | 0.8m |
