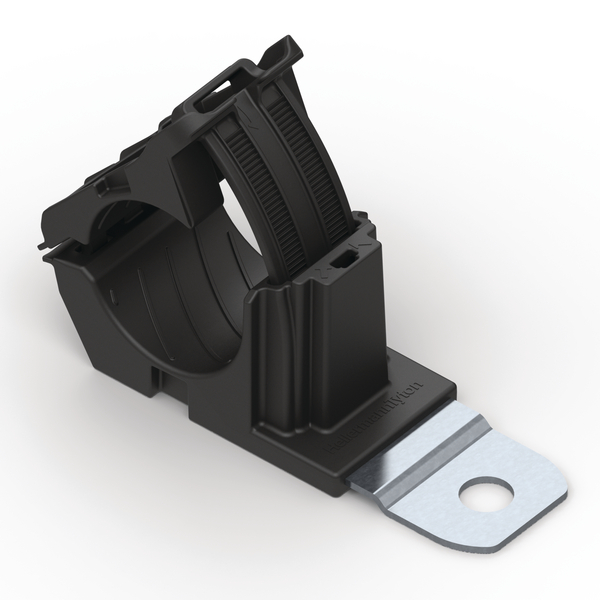

P-clamp short, Dmin=19.4mm, Dmax=36.0mm, ∅8.4 mm, 180°, black, 160pcs.
Art.-No. 151-02737 | RCC180SM8SS-PA666V0/SS304-BK | Details

Ratchet P-Clamp C-Series for bundle diameters from 19.4 mm to 36.0 mm
One-piece ratchet closure design allows for easy installation during pre- or final assembly
Multiple configurations handle a wide range of diameters and applications, reducing part inventory
Clamp interior is designed to guide and center bundle to reduce pinching
Easy release feature allows for quick adjustments and maintenance
Impact modified, heat and UV stabilized PA66 provides long-term durability, in- and outdoors
Steel mounting plate tolerates high torque mounting and is treated to resist chemicals and salt spray

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

This product is part of:

Samples_Railway

Application	The Ratchet P-Clamp family offers versatility when managing wires, cables and hoses. The robust design and durable materials make it ideal for heavy duty applications, both in- and outdoors. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This nondestructive release allows the clamp to be reused without removing or replacing any bolts or screws. The Ratchet P-Clamp is offered in four sizes and multiple mounting configurations.
Colour	Black (BK)
Fixation Method	Screw Mounting
Key product features	removable, releasable, vibration absorbing, for multiple routing
Local order number	151-02737
Material	Polyamide 6.6/6, V0 (PA666V0), Stainless Steel (SS304)
PART DESCRIPTION	RCC180SM8SS-PA666V0/SS304-BK
Pack Cont.	160pcs.
Package Content packed in	Bag
Product Family	For bundle diameters from 19.4 mm to 36.0 mm, C-Series
Product Group	Ratchet P-Clamp
Short Description	Ratchet P-Clamp, for bundle diameters 19,4-36 mm
Type	RCC180SM8SS
Variant	Short

Angle	180
Bundle Diameter max (metric)	36.0mm
Bundle ∅	19.4-36.0mm
Bundle ∅ min.	19.4mm

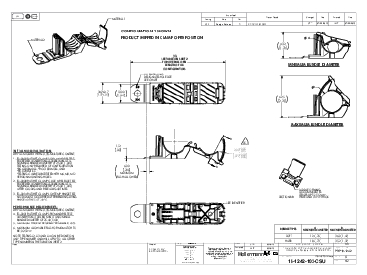

Fixing Hole Centres (F)	62.3mm
Fixing Hole Centres (F) (imperial)	2.45"
Length (L)	156.1mm
Length (L2)	103.0mm
Min.Tensile Strength	445N
Stud ∅	M8
Weight/Unit	0.041443kg
Width (W)	34.9mm
Width (W2)	30.0mm
for Hole ∅ (FH)	8.4 mm
