ZN-BK | Details

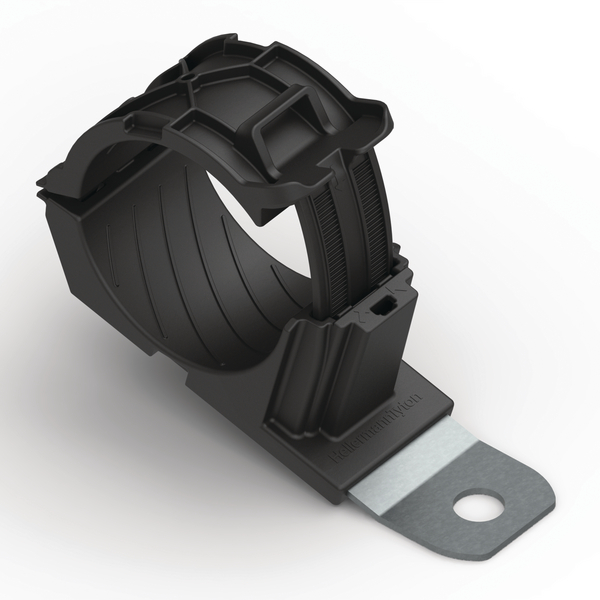

Ratchet P-Clamp D-Series for bundle diameters from 35.1 mm to 51.0 mm
One-piece ratchet closure design allows for easy installation during pre- or final assembly
Multiple configurations handle a wide range of diameters and applications, reducing part inventory
Clamp interior is designed to guide and center bundle to reduce pinching
Easy release feature allows for quick adjustments and maintenance
Impact modified, heat and UV stabilized PA66 provides long-term durability, in- and outdoors
Steel mounting plate tolerates high torque mounting and is treated to resist chemicals and salt spray

Request your individual offer now

Request quote

Distributors near you

More products in this product group:

Application	The Ratchet P-Clamp family offers versatility when managing wires, cables and hoses. The robust design and durable materials make it ideal for heavy duty applications, both in- and outdoors. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This nondestructive release allows the clamp to be reused without removing or replacing any bolts or screws. The Ratchet P-Clamp is offered in four sizes and multiple mounting configurations.
Colour	Black (BK)
Fixation Method	Screw Mounting
Key product features	vibration absorbing, reusable, removable, for multiple routing
Local order number	151-01511
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Steel (ST), Zinc plated (ZN)
PART DESCRIPTION	RCD15SM12-PA66HIRHSUV/ST/ZN-BK
Pack Cont.	160pcs.
Package Content packed in	Box
Product Family	For bundle diameters from 36.0 mm to 51.0 mm, D-Series
Product Group	Ratchet P-Clamp
Short Description	Fixing element 180.9x34.9 mm, bundle diameter: 36-51 mm, M12, black
Type	RCD15SM12
Variant	Short


Angle	15
Bundle Diameter max (metric)	51.0mm
Bundle ∅	36.0-51.0mm
Bundle ∅ min.	36.0mm
Fixing Hole Centres (F)	69.1mm
Fixing Hole Centres (F) (imperial)	2.72"
Length (L)	180.9mm
Length (L2)	115.9mm
Min.Tensile Strength	445N
Strap Width max. (G)	13.2mm
Strap Width max. (G) (imperial)	0.52"
Stud ∅	M12
Weight/Unit	0.04422kg
Width (W)	34.9mm
Width (W2)	30.0mm
for Hole ∅ (FH)	12.95 mm
