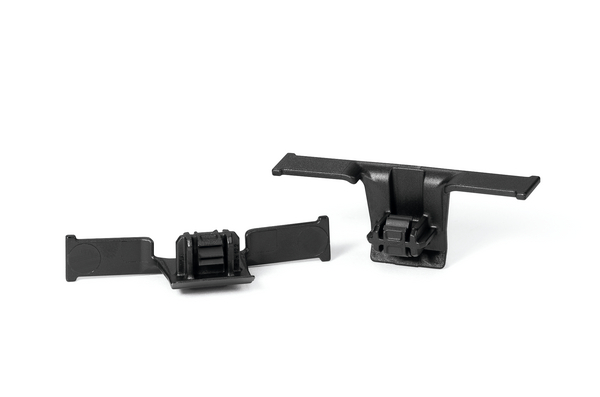

Bundling clip for hole (oval), L=50.0mm, SO=11.5mm, black, 2500pcs.
Art.-No. 151-03429 | SOC11.5FT6.2x12.2-PA66HIRHS-BK |  Details

Bundling Clip for oval holes (6.2 x 12.2 mm).

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Local order number SOC11.5FT6.2x12.2 _PA66HIRHS_BK_20-0264
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION SOC11.5FT6.2x12.2-PA66HIRHS-BK
    Pack Cont. 2500pcs.
    Package Content packed in Bag
    Type SOC11.5FT6.2x12.2
    Bundling Bar Length 50.0mm
    Fixing Hole Shape Oval
    Height (H) 7.2mm
    Length (L) 50.0mm
    Length (L2) 15.0mm
    Offset Length 11.5mm
    Panel Thickness max. 0.6 - 2.0mm
    Weight/Unit 0.001162kg
    Width (W) 18.7mm
    for Hole ∅ (FH) 6.2 x 12.2 mm
    for Panel Thickness min - max 0.6 - 2 mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026661339
    Packaging 1 - Length (m) 0.47m
    Packaging 1 - Qty 2500
    Packaging 1 - Type Bag
    Packaging 1 - Weight (kg) 2.948597kg
    Packaging 1 - Width (m) 0.545m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 10000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 12.614388kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 120000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 172.392kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
