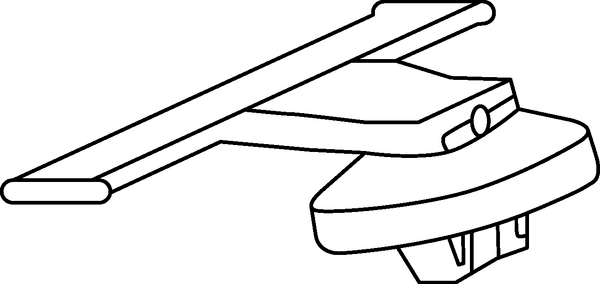

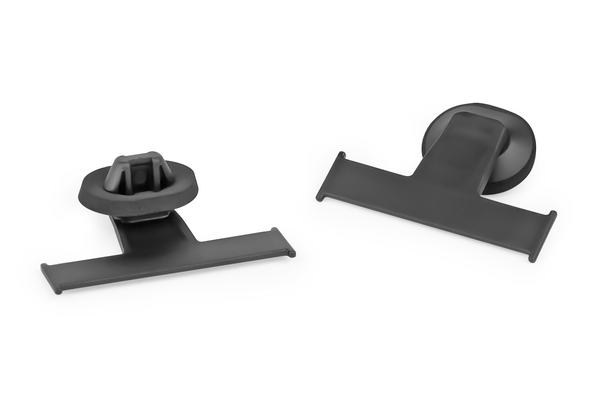

Bundling clip for hole (oval), L=50.0mm, SO=20.0mm, black, 500pcs.
Art.-No. 151-01255 | SOC20SFT712-MD-PA66HIRHS/EPDM-BK Details

  • Simple installation, tool-free
  • Defined distance to the mounting

Request your individual offer now

Application These cable clips are particularly popular in the automotive industry, as cable harnesses can be easily installed in different areas of the vehicle. Due to their flat and lightweight design, they are an optimal solution for limited spaces.hole
Colour Black (BK)
Local order number SOC20SFT712-MD-HIRHS-BK
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Ethylene Propylene Diene Terpolymer rubber free of Nitrosamine (EPDM)
PART DESCRIPTION SOC20SFT712-MD-PA66HIRHS/EPDM-BK
Pack Cont. 500pcs.
Package Content packed in Bag
Product Family Oval holes, sealed
Product Group Bundling Clips with Arrowhead for Distance Routing
Short Description Bundling Clip, oval hole 7.0 x 12.0 mm, arrow head, sealed, PA66HIRHS / EPDM, black
Type SOC20SFT712-MD
Bundling Bar Length 50.0mm
Fixing Hole Shape Oval
Length (L) 50.0mm
Length (L2) 20.0mm
Offset Length 20.0mm
Weight/Unit 0.0023kg
for Hole ∅ (FH) 7.0 x 12.0 mm
for Panel Thickness min - max 0.6 - 2 mm
ELV compliant Dir. Art. 4 (2) YES
Hazardous Goods No
ROHS compliant Yes
Specifications
Country of Origin CN
Customs Number 39269097
GTIN-13 / EAN 4031026479767
Packaging 1 - Height (m) 0.13m
Packaging 1 - Length (m) 0.31m
Packaging 1 - Qty 500
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.01249
Packaging 1 - Weight (kg) 1.150001kg
Packaging 1 - Width (m) 0.31m
Packaging 3 - Height (m) 0.2m
Packaging 3 - Length (m) 0.59m
Packaging 3 - Qty 3000
Packaging 3 - Type Box
Packaging 3 - Volume (m³) 0.046
Packaging 3 - Weight (kg) 7.720006kg
Packaging 3 - Width (m) 0.39m
Packaging 4 - Height (m) 1.144m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 60000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.098
Packaging 4 - Weight (kg) 175.4kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
