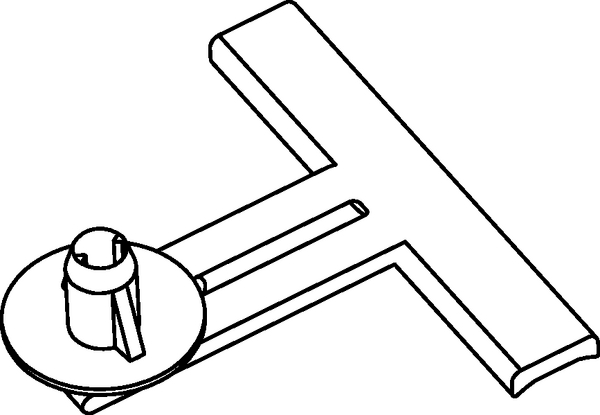

Bundling clip for hole (round), L=50.0mm, SO=36.0mm, natural, 1000pcs.
Art.-No. 151-01598 | SOC30D6-PA66-NA | Details

Add to watchlist

Request your individual offer now

Request quote

Distributors near you

Downloads Datasheet

More products in this product group:

Bundling Clips with Arrowhead for Distance Routing >

Base Data

Colour	Natural (NA)
Local order number	SOC30D6/1000PTD/N
Material	Polyamide 6.6 (PA66)
PART DESCRIPTION	SOC30D6-PA66-NA
Pack Cont.	1000pcs.
Package Content packed in	Bag
Product Family	Round holes
Product Group	Bundling Clips with Arrowhead for Distance Routing
Type	SOC30D6

Product Dimensions

Bundling Bar Length	50.0mm
Length (L)	50.0mm
Length (L2)	31.5mm
Offset Length	36.0mm
Panel Thickness max.	1.2mm
for Hole ∅ (FH)	6.4 - 7.1 mm, 6.35 mm (hexagonal)
for Panel Thickness min - max	1.2 - 1.2 mm

Downloads

Specifications

Logistics and Packaging

Country of Origin	SG
GTIN-13 / EAN	4031026562780

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	39121702
