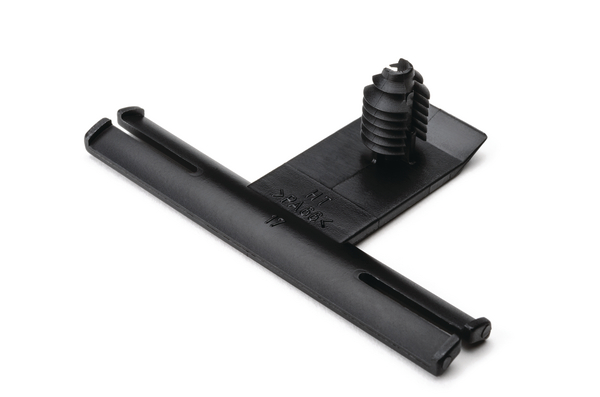

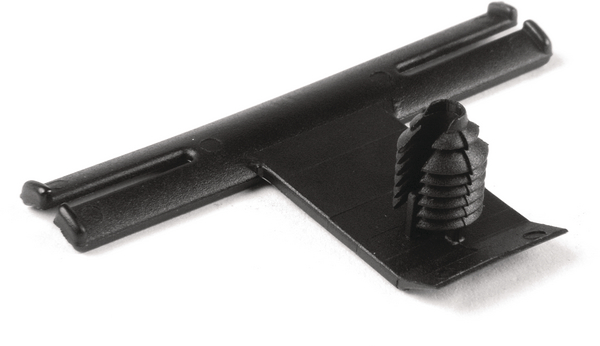

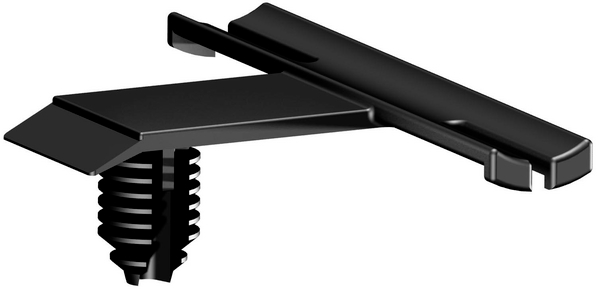

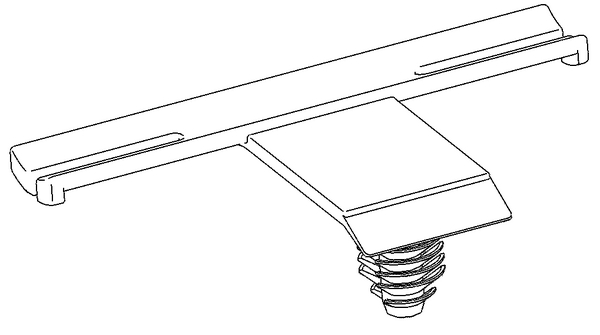

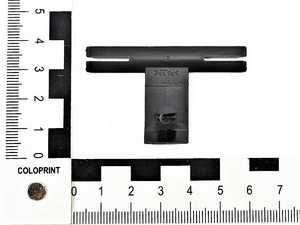

Bundling clip for hole (round), L=55.0mm, SO=20.0mm, black, 500pcs.
Art.-No. 155-30902
| SOC4MFT6-PA66HIRHS-BK
|
Details
- Separate, flexible winding bars at either end of clip
- Perfect match for cable bundle
- Spacer to ensure safely guided cable looms at set distance from edges or drill holes
- Fir tree base facilitates use on metals of varying thicknesses
- High holding forces ensure cable bundle is fastened securely
Request your individual offer now
Request quote
More products in this product group:
| Application | Originally designed for the Automotive industry, these clips offer simple and easy methods of securing cable hoses or pipes. They have many applications within a wide range of industries. |
| Anti rotation (Yes / No) | NO |
| Colour | Black (BK) |
| Fixation Method | Fir Tree |
| Local order number | SOC4MFT6.HB6P |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | SOC4MFT6-PA66HIRHS-BK |
| Pack Cont. | 500pcs. |
| Package Content packed in | Bag |
| Product Family | SOC4MFT6LG for distance routing 20.0 mm |
| Product Group | Bundling Clips with Fir Tree, for Distance Routing |
| Short Description | Bundling Clip, round hole 6.5 - 7.0 mm, fir tree, offset, high impact modified, heat stabilised, black |
| Type | SOC4MFT6 |
| Wings on clip base (Yes / No) | YES |
| Bundling Bar Length | 55.0mm |
| Fixing Hole Shape | Circular |
| Height (H) | 13.7mm |
| Length (L) | 55.0mm |
| Length (L2) | 20.32mm |
| Length of Fir Tree | 13.7mm |
| Offset Length | 20.0mm |
| Panel Thickness max. | 0.7 - 5.1mm |
| Weight/Unit | 0.00154kg |
| Width (W) | 20.0mm |
| for Hole ∅ (FH) | 6.5 - 7.0 mm |
| for Panel Thickness min - max | 0.7 - 5.1 mm |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C, (+105 °C for 500 h) |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026217543 |
| Packaging 1 - Height (m) | 0.05m |
| Packaging 1 - Length (m) | 0.26m |

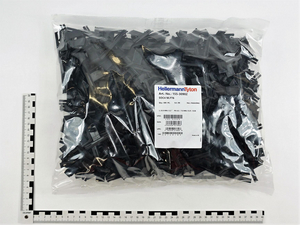

| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00442m³ |
| Packaging 1 - Weight (kg) | 0.799kg |
| Packaging 1 - Width (m) | 0.34m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 6000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 10.408kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 72000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 145.896kg |
| Packaging 4 - Width (m) | 0.8m |
