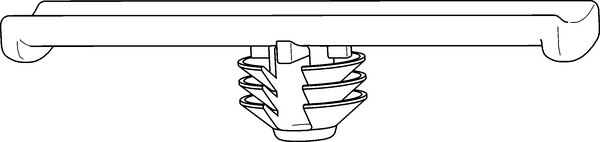

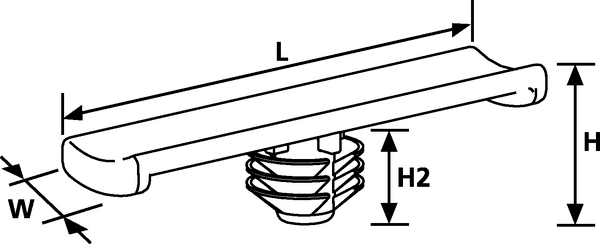

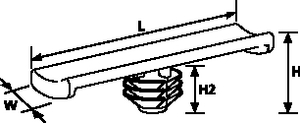

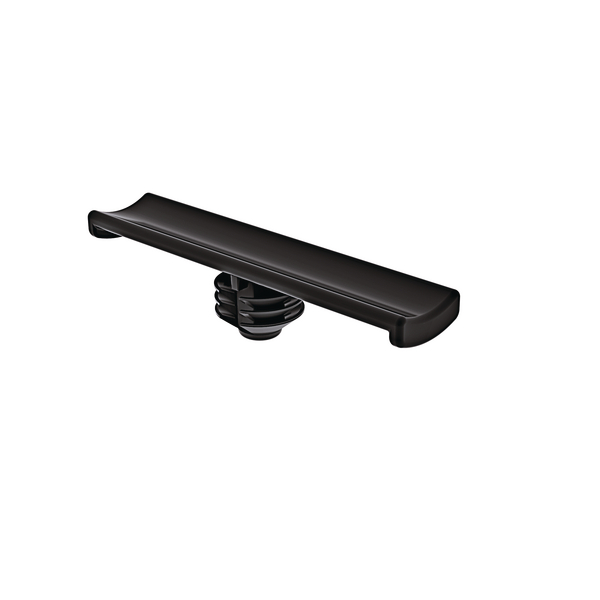

Bundling clip for hole (round), L=37.0mm, black, 1000pcs.
Art.-No. 150-95500
| TC5FT6S-PA66HIRHS-BK
|
Details
- Easy to install without the need for a tool
- One fir tree foot part can be used for a variety of panel thicknesses
- Suitable for use within threaded holes
- Holding tabs prevent the tie slipping sideways
- Versions for oval holes feature anti-twist protection
Request your individual offer now
Request quote
More products in this product group:
| Colour | Black (BK) |
| Fixation Method | Fir Tree |
| Local order number | 150-95500.NB7P |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | TC5FT6S-PA66HIRHS-BK |

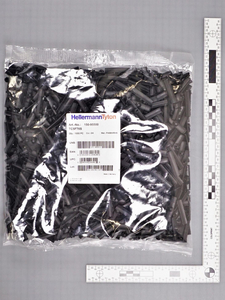

| Pack Cont. | 1000pcs. |
| Package Content packed in | Bag |
| Product Group | Bundling Clips with Fir Tree |
| Short Description | Bundling Clips with Fir Tree for Panel Thickness 0.75-1.5mm black |
| Type | TC5FT6S |
| Wings on clip base (Yes / No) | YES |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C, (+105 °C for 500 h) |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026206189 |
| Packaging 1 - Height (m) | 0.03m |
| Packaging 1 - Length (m) | 0.31m |
| Packaging 1 - Qty | 1000 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0026m³ |
| Packaging 1 - Weight (kg) | 0.588kg |
| Packaging 1 - Width (m) | 0.28m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 25000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 15.52kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 300000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 207.24kg |
| Packaging 4 - Width (m) | 0.8m |
