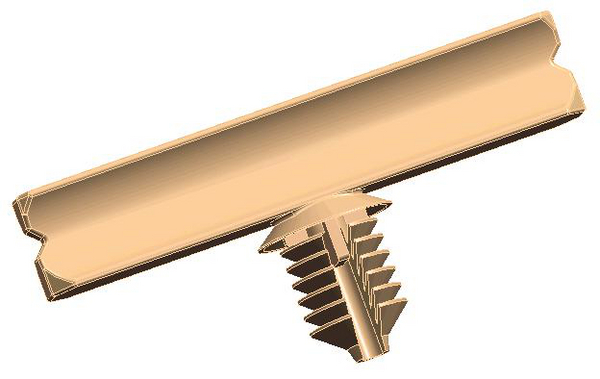

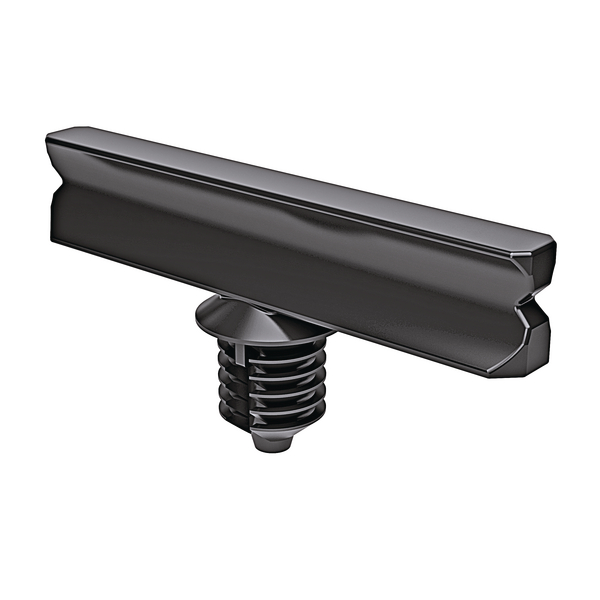

Bundling clip for hole (round), L=40.0mm, black, 1000pcs.
Art.-No. 155-39002 | TCDSFT6-HEX-PA66HIRHS-BK |  Details

    • Easy to install without the need for a tool
    • One fir tree foot part can be used for a variety of panel thicknesses
    • Suitable for use within threaded holes
    • Holding tabs prevent the tie slipping sideways
    • Versions for oval holes feature anti-twist protection
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote

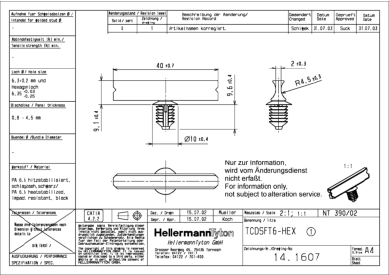

    Downloads CAD-Download Datasheet
    Colour Black (BK)
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION TCDSFT6-HEX-PA66HIRHS-BK
    Pack Cont. 1000pcs.
    Package Content packed in Bag
    Product Group Bundling Clips with Fir Tree
    Short Description Bundling Clip, round hole 6.1 - 6.5 mm;6.1 - 6.38 mm (hexagonal), fir tree, high impact modified, heat stabilised, black
    Type TCDSFT6-HEX
    Bundling Bar Length 40.0mm
    Length (L) 40.0mm
    Panel Thickness max. 0.8 - 4.5mm
    Weight/Unit 0.001207kg
    for Hole ∅ (FH) 6.1 - 6.38 mm (hexagonal), 6.1 - 6.5 mm
    for Panel Thickness min - max 0.8 - 4.5 mm
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026218076
    Packaging 1 - Height (m) 0.045m
    Packaging 1 - Length (m) 0.36m
    Packaging 1 - Qty 1000
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00421m³
    Packaging 1 - Weight (kg) 1.228815kg
    Packaging 1 - Width (m) 0.26m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 12000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 15.56578kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 144000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 207.816kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
