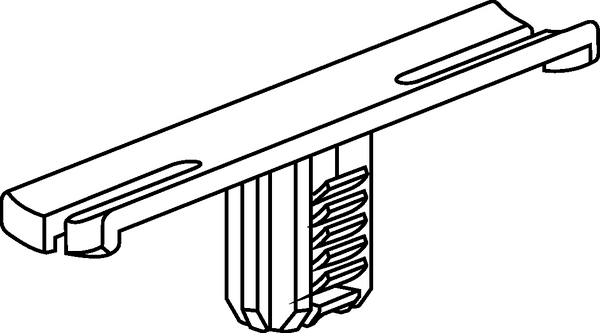

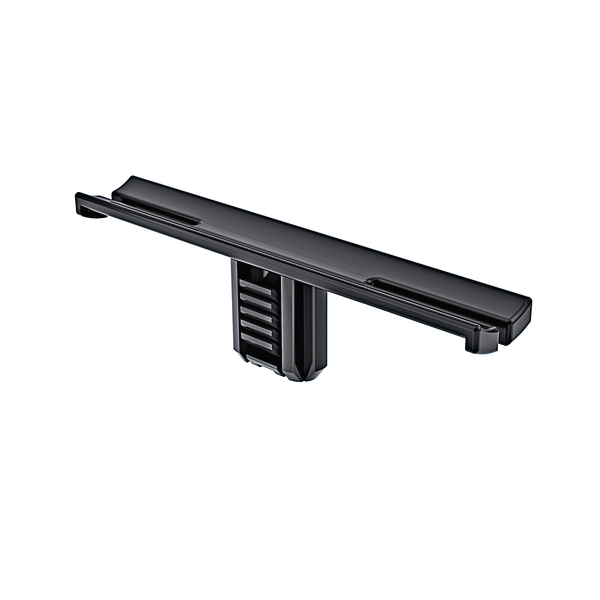

Bundling clip for hole (oval), L=55.0mm, black, 7000pcs.
Art.-No. 151-03430 | TCOP62x122-PA66HIRHS-BK |  Details

BundlingClips with fir tree bases for a variety of applications with a wide range of metal thicknesses and drill holes.

    • Simple installation, tool-free
    • Is attached to the bundle element with cable ties or adhesive tape
    • The oval base geometry serves as anti-twist protection and for defined cable routing
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application These bundling clips are mainly used in the automotive industry, particularly for the assembly of cable harnesses. They offer a simple and user-friendly method for fastening cables, hoses and pipes.
    Colour Black (BK)
    Fixation Method Fir Tree for oval holes
    Local order number TCOP62x122-PA66HIRHS-BK (7000)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION TCOP62x122-PA66HIRHS-BK
    Pack Cont. 7000pcs.
    Package Content packed in Carton
    Product Group Bundling Clips with Fir Tree, for Oval Holes
    Type TCOP62x122
    Bundling Bar Length 55.0mm
    Fixing Hole Shape Oval

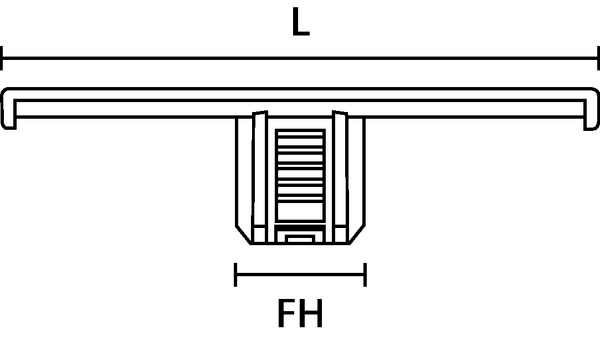

    Length (L) 55.0mm
    Panel Thickness max. 0.6 - 6.0mm
    Weight/Unit 0.001232kg
    for Hole ∅ (FH) 6.2 x 12.2 mm
    for Panel Thickness min - max 0.6 - 6 mm
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026661582
    Packaging 1 - Height (m) 0.8m
    Packaging 1 - Length (m) 0.6m
    Packaging 1 - Qty 7000
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.192m³
    Packaging 1 - Weight (kg) 8.689411kg
    Packaging 1 - Width (m) 0.4m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 7000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 9.339411kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 140000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 207.78kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
