22/12/2024

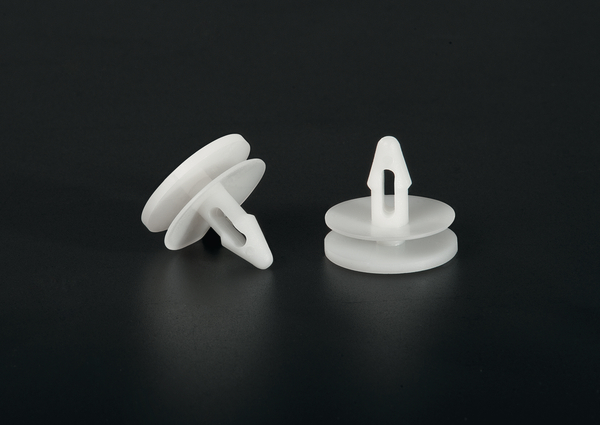

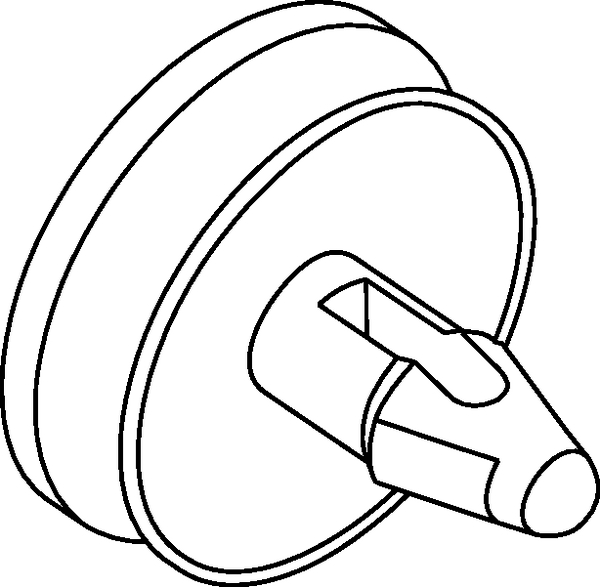

Blind plug, ∅5.0 mm, natural, 1200pcs.
Art.-No. 151-00333 | TRIM PLUG 5-PA66HIR-NA |  Details

Blindplugs are available in different dimensions and materials.

    • Easy assembly without the need of a tool
    • Disc covers the hole and minimises ingress of dust, dirt and water
    • Types "TRIM PLUG 5 and "PLUGSFT8.4": with additional retainer to fix panel or cover
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Our Plugs were developed especially for the automotive industry. Application in trunks, doors, wheel housing and dash panels. Whenever needed to secure a hole against dirt or dust. Sometimes even used for optical reasons.
    Colour Natural (NA)
    Local order number 18021
    Material Polyamide 6.6, high impact modified (PA66HIR)
    PART DESCRIPTION TRIM PLUG 5-PA66HIR-NA
    Pack Cont. 1200pcs.
    Package Content packed in Carton
    Product Group Blind plugs
    Short Description Blind Plug natural
    Type TRIM PLUG 5
    Weight/Unit 0.0007kg
    for Hole ∅ (FH) 5.0 mm
    for Panel Thickness min - max 4 - 4.5 mm
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026330570
    Packaging 1 - Height (m) 0.09m
    Packaging 1 - Length (m) 0.3m
    Packaging 1 - Qty 1200
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.0054m³
    Packaging 1 - Weight (kg) 0.840001kg
    Packaging 1 - Width (m) 0.2m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 12000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 9.22001kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 144000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 131.64kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
