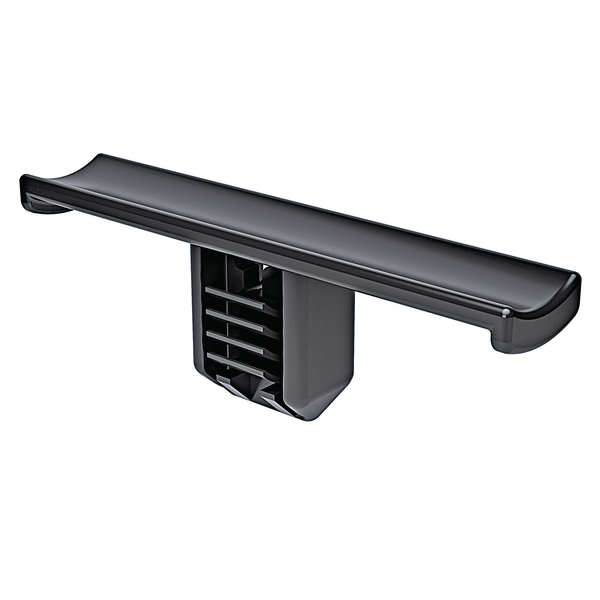

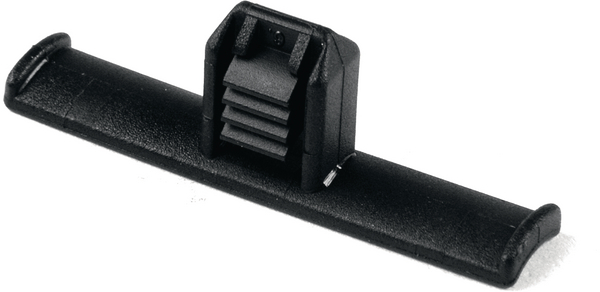

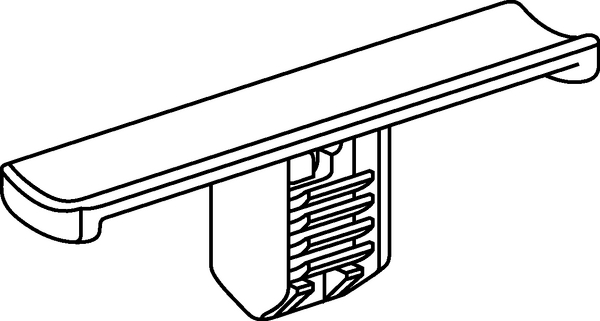

Bundling clip for hole (oval), L=40.0mm, black, 1000pcs.
Art.-No. 155-16301
| WICKELCLIP-VDS-PA66HIRHS-BK
|
Details
- Especially for banding of cables and cable harnesses
- Fastened onto bundling bar with cable ties or adhesive tape
- Various base geometries for wide variety of metal gauges and bore diameters
- Versions for oval holes feature anti-twist protection
Request your individual offer now
Request quote
More products in this product group:
| Application | These cable clips are particularly popular in the automotive industry, as cable harnesses can be easily installed in different areas of the vehicle. Due to their flat and lightweight design, they are an optimal solution for limited spaces. |
| Anti rotation (Yes / No) | YES |
| Colour | Black (BK) |
| Fixation Method | Fir Tree for oval holes |
| Local order number | 155-16301 |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | WICKELCLIP-VDS-PA66HIRHS-BK |
| Pack Cont. | 1000pcs. |
| Package Content packed in | Bag |
| Product Group | Bundling Clips with Fir Tree, for Oval Holes |
| Short Description | Bundling Clip 40 mm, with fir tree, high impact modified, heat stabilised, black |
| Type | WICKELCLIP-VDS |
| Wings on clip base (Yes / No) | YES |
| Bundling Bar Length | 1.57" |
| Bundling Bar Length | 40.0mm |
| Fixing Hole Shape | Oval |
| Height (H) | 12.2mm |
| Height (H2) | 10.7mm |
| Length (L) | 40.0mm |
| Length (L2) | 9.6mm |
| Panel Thickness max. | 0.6 - 2.5mm |
| Weight/Unit | 0.000881kg |
| Width (W) | 8.0mm |
| for Hole ∅ (FH) | 6.3 x 9.0 mm, 6.3 x 10.0 mm |
| for Panel Thickness min - max | 0.6 - 2.5 mm |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C, (+105 °C for 500 h) |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026215129 |
| Packaging 1 - Height (m) | 0.045m |
| Packaging 1 - Length (m) | 0.34m |
| Packaging 1 - Qty | 1000 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00428m³ |
| Packaging 1 - Weight (kg) | 0.899kg |
| Packaging 1 - Width (m) | 0.28m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 10000 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 9.64kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.164m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 200000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.117m³ |
| Packaging 4 - Weight (kg) | 213.8kg |
| Packaging 4 - Width (m) | 0.8m |
