Cable clip for hole (round), T=0.8 - 4.0mm, ∅4.75 mm, Dmin=10.0mm, Dmax=11.0mm
Art.-No. 151-00752 | WPC10-PA66-NA |  Details

WPC – Wire Push In Clip.

    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application With the increased complexitiy of electronic and electrical installations the use of WPC Clips enables cables to be installed using a minimum amount of space. A perfect solution for the frame/rails of controll cabinets or the white goods industry.
    Colour Natural (NA)
    Fixation Method Plug-in mounting
    Key product features for faster processing, for narrow space, reusable, small diameter
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION WPC10-PA66-NA
    Pack Cont. 100pcs.
    Package Content packed in Bag
    Product Family WPC-Series
    Product Group Wire push in clips
    Short Description Harness clip 15x5.25x17.7 mm, close, round hole, arrow head, natural
    Type WPC10
    Variant Closed
    Bundle Diameter max (metric) 11.0mm
    Bundle ∅ 10.0-11.0mm
    Bundle ∅ min. 10.0mm
    Disc ∅ 15.0mm

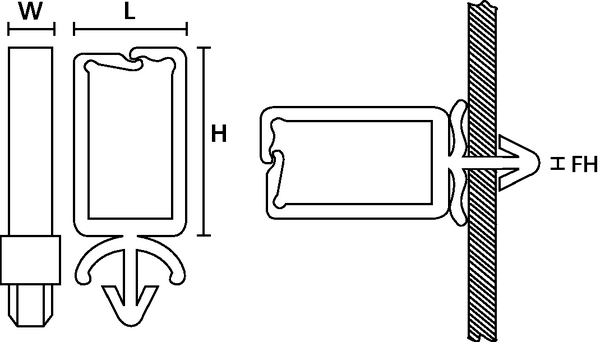

    Height (H) 17.7mm
    Length (L) 15.0mm
    Panel Thickness max. 0.8 - 4.0mm
    Width (W) 5.25mm
    for Hole ∅ (FH) 4.75 mm
    for Panel Thickness min - max 0.8 - 4 mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin BR
    GTIN-13 / EAN 7890176002815
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
