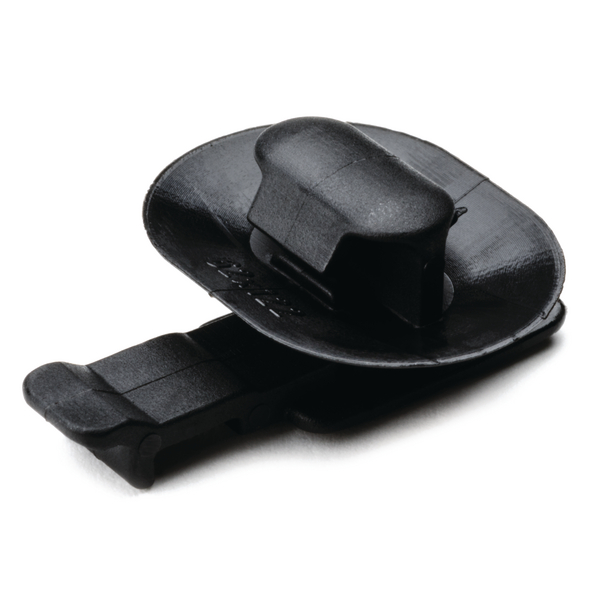

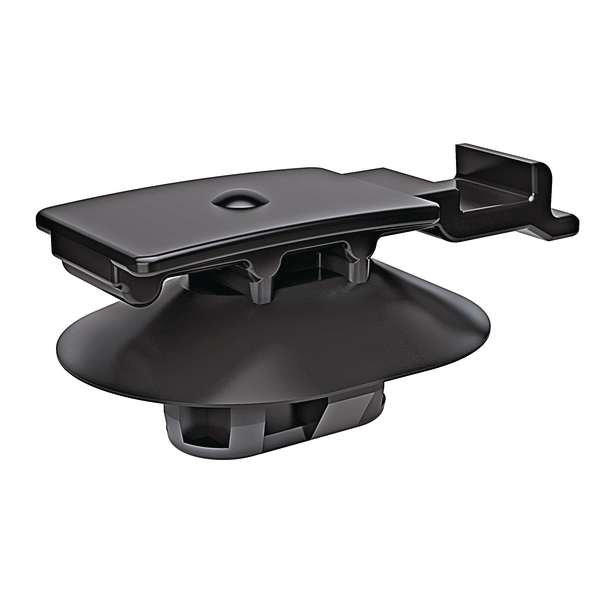

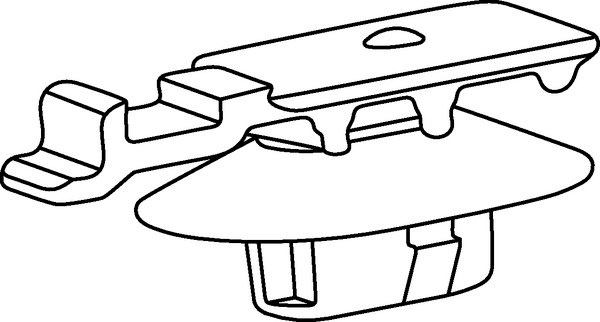

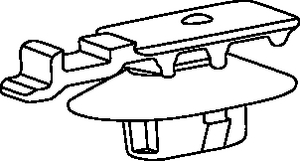

Connector clip for hole (oval), EWCAP-005-11, black, 10000pcs.
Art.-No. 151-00836 | YCCKSFT62x122PT1.7-2.3-PA66HIRHS-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method Fir Tree for oval holes
    Local order number YCCKSFT62x122PT1.7-2.3_HS_H1
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION YCCKSFT62x122PT1.7-2.3-PA66HIRHS-BK
    Pack Cont. 10000pcs.
    Package Content packed in Bag
    Product Group Connector Clips for oval holes
    Type YCCKSFT62x122PT1.7-2.3
    Fixing Hole Shape Oval
    Height (H) 12.4mm
    Length (L) 27.0mm
    Panel Thickness max. 1.7 - 2.3mm
    Weight/Unit 0.0009kg
    Width (W) 16.0mm
    for Hole ∅ (FH) 6.2 x 12.2 mm
    for Panel Thickness min - max 1.7 - 2.3 mm
    CE Certification No
    CSA Certified No
    ELV compliant Dir. Art. 4 (2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026411231
    Packaging 1 - Qty 10000
    Packaging 1 - Type Bag
    Packaging 1 - Weight (kg) 9.066663kg
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 10000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 9.716663kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 200000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 215.34kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
