19/11/2024

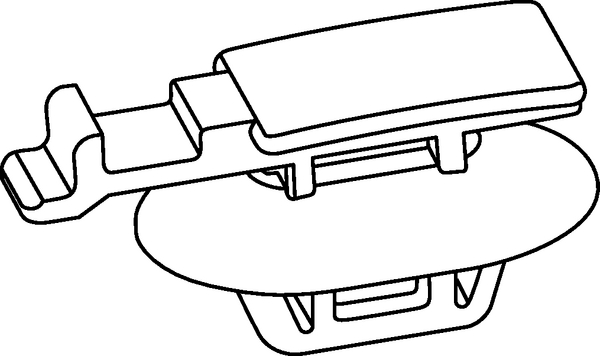

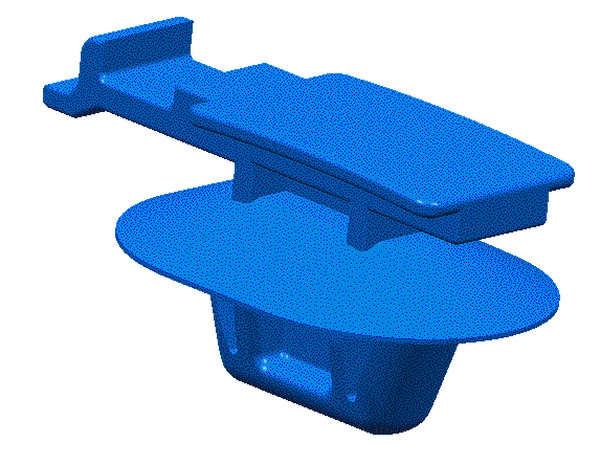

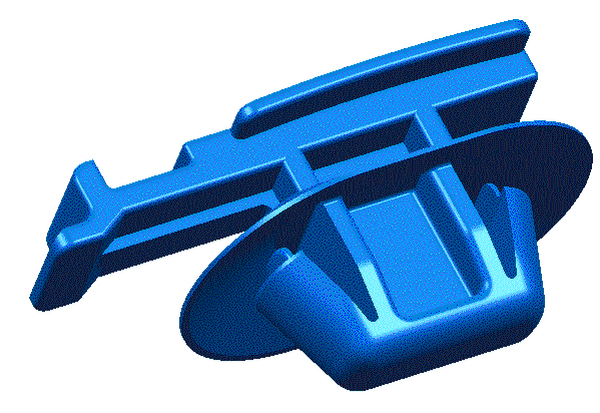

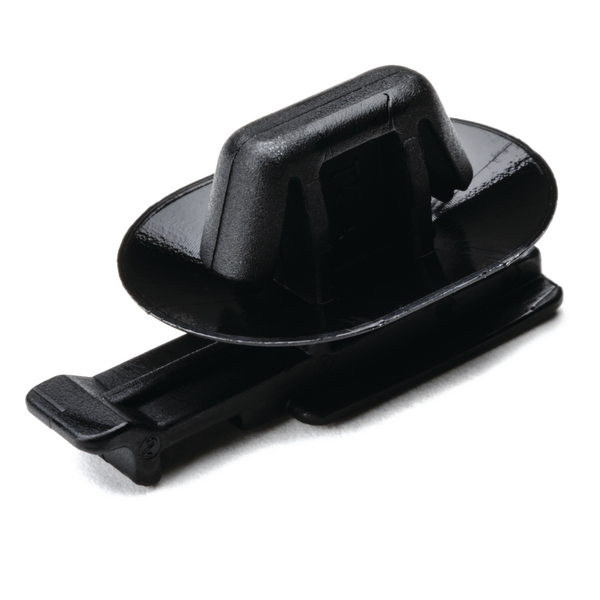

Connector clip for hole (oval), EWCAP-005-11, black, 500pcs.
Art.-No. 151-00513 | YCCSFT62122-PA66HIRHS-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download Datasheet
    Anti rotation (Yes / No) YES
    Colour Black (BK)
    Fixation Method arrowhead
    Local order number 151-00513
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION YCCSFT62122-PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in Bag
    Product Group Connector Clips for Oval Holes
    Short Description Connector Clip, oval hole 6.2 x 12.2 mm, arrow head, high impact modified, heat stabilised, black
    Type YCCSFT62122
    Disc ∅ 22.0mm
    Fixing Hole Shape Oval
    Height (H) 14.1mm
    Length (L) 27.5mm
    Panel Thickness max. 0.6 - 1.0mm
    Weight/Unit 0.000996kg
    Width (W) 16.0mm
    for Hole ∅ (FH) 6.2 x 12.2 mm
    for Panel Thickness min - max 0.6 - 1 mm
    CE Certification No
    CSA Certified No
    ELV compliant Dir. Art. 4 (2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C, (+105 °C for 500 h)
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026277202
    Packaging 1 - Height (m) 0.3m
    Packaging 1 - Length (m) 0.625m
    Packaging 1 - Qty 500
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.0825m³
    Packaging 1 - Weight (kg) 0.551478kg
    Packaging 1 - Width (m) 0.44m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 15000
    Packaging 3 - Type Box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 17.36434kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 180000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 229.2kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
