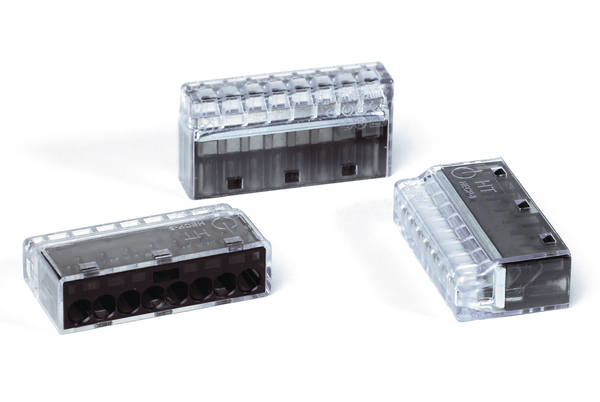

HelaCon Plus Type: HECP-8
|
|
|
|
To use the watchlist, please login or register:
Login / Register
|
|
148-90005
|
Base Data |
| Colour |
Transparent (CL), Grey (GY)
|
| Material |
Polycarbonate (PC)
|
| Number of Conductors |
8
|
| Pack Cont. |
40pcs.
|
| Package Content packed in |
Box
|
| PART DESCRIPTION |
HECP-8-PC-CL/GY
|
| Port count |
8
|
| Product Family |
HelaCon Plus
|
| Product Group |
Connectors
|
| Short Description |
Push-in Wire Connector 8-pole 0.5 to 2.5 mm² solid / stranded (max. 7 cores) transparent/grey
|
| Suitable for flexible core (Yes/No) |
No
|
| Suitable for multi wire core (Yes/No) |
Yes
|
| Suitable for solid core (Yes/No) |
Yes
|
Product Dimensions |
| Height (H) |
10.45mm
|
| Length (L) |
19.0mm
|
| Max Current |
24A
|
| Max Voltage |
600V
|
| Stripping Length |
11mm
|
| Weight/Unit |
0.00875kg
|
| Width (W) |
36.65mm
|
| Wire Range (cULus) |
AWG 12 to 22 solid/stranded
|
| Wire Range (VDE) |
0.5 to 2.5 mm² solid / stranded (max. 7 cores)
|
Specifications |
| ELV compliant Dir. Art. 4 (2) |
YES
|
| Flammability |
UL 94 V2
|
| Halogen-free |
Yes
|
| Hazardous Goods |
No
|
| Operating Temperature |
-30 °C to +85 °C
|
| Specifications |
|
| Specifications |
ANSI/UL 486-A, ANSI/UL 486-B, ANSI/UL 486-C, CEN, DEMKO, DIN EN 60998-2-2:2005-03, EN 60998-2-2:1993, ENEC, FIMKO, NEMKO, SEMKO
|
| UL-File Number |
E316080
|
Logistics and Packaging |
| Country of Origin |
CN
|
| Customs Number |
85369010
|
| GTIN-13 / EAN |
4031026268811
|
| Packaging 1 - Height (m) |
0.07m
|
| Packaging 1 - Length (m) |
0.105m
|
| Packaging 1 - Qty |
40
|
| Packaging 1 - Type |
Bag
|
| Packaging 1 - Volume (m³) |
0.00055m³
|
| Packaging 1 - Weight (kg) |
0.350001kg
|
| Packaging 1 - Width (m) |
0.075m
|
| Packaging 2 - Height (m) |
0.075m
|
| Packaging 2 - Length (m) |
0.35m
|
| Packaging 2 - Qty |
200
|
| Packaging 2 - Type |
Carton
|
| Packaging 2 - Volume (m³) |
0.0026m³
|
| Packaging 2 - Weight (kg) |
1.75kg
|
| Packaging 2 - Width (m) |
0.1m
|
| Packaging 3 - Height (m) |
0.32m
|
| Packaging 3 - Length (m) |
0.37m
|
| Packaging 3 - Qty |
2400
|
| Packaging 3 - Type |
Carton
|
| Packaging 3 - Volume (m³) |
0.029m³
|
| Packaging 3 - Weight (kg) |
21.5kg
|
| Packaging 3 - Width (m) |
0.245m
|
| Packaging 4 - Length (m) |
1.2m
|
| Packaging 4 - Qty |
64800
|
| Packaging 4 - Type |
pallet
|
| Packaging 4 - Weight (kg) |
601.5kg
|
| Packaging 4 - Width (m) |
0.8m
|
More Information |
| ETIM 7.0 Key |
EC000446
|
| ETIM 8.0 Key |
EC000446
|
| ETIM 9.0 Key |
EC000446
|
| UNSPSC Key |
39121409
|
