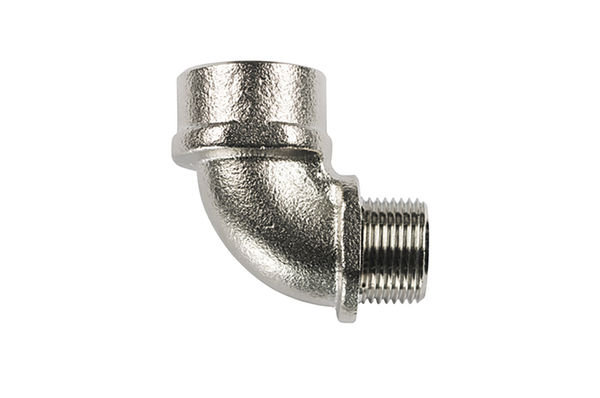

Metallic Fitting with Internal and External Thread A90FM 90° M32
Art.-No. 166-50004 | A90FM-M32-NPB-ML |  Details

HelaGuard A90FM 90° Elbow.

    • IP68 when used with sealing washers
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Application Internal and external thread, nickel plated brass.
    Colour Metal (ML)
    Material Nickel Plated Brass (NPB)
    PART DESCRIPTION A90FM-M32-NPB-ML
    Pack Cont. 2pcs.
    Package Content packed in Bag
    Product Family A90FM 90° Elbow
    Product Group HelaGuard Accessories
    Short Description Metallic Fitting with Internal and External Thread A90FM 90° M32
    Thread type metric
    Type A90FM-M32
    Type of connection Thread
    Variant 90°-elbow
    Angle 90

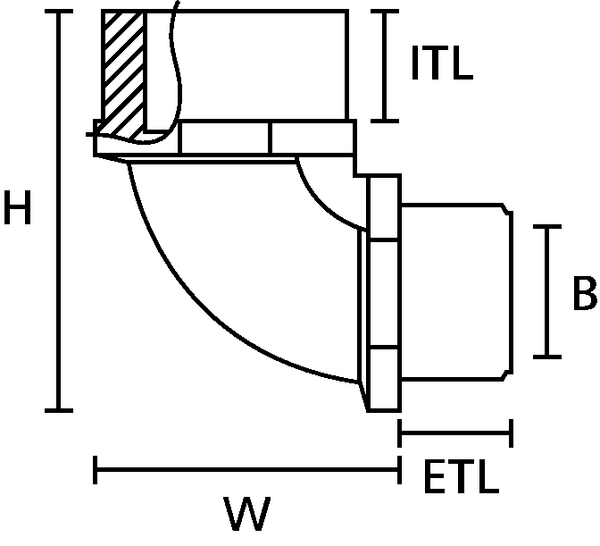

    External Thread Length (ETL) 15mm
    Height (H) 66.6mm
    Internal Thread Length 16mm
    Min. Bore Size (B) 27.0mm
    Thread Length (TL) 15mm
    Thread Size M32
    Weight/Unit 2.32kg
    Width (W) 53.6mm
    CAS Number 7439-92-1
    CE Certification Yes
    Critical Substance Lead in Copper alloy 4%
    EC Number 231-100-4
    ELV compliant Dir. Art. 4 (2) YES
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -100 °C to +300 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 74122000
    GTIN-13 / EAN 4031026309606
    Packaging 1 - Height (m) 0.042m
    Packaging 1 - Length (m) 0.19m
    Packaging 1 - Qty 2
    Packaging 1 - Type Bag
    Packaging 1 - Volume (m³) 0.00128m³
    Packaging 1 - Weight (kg) 4.64kg
    Packaging 1 - Width (m) 0.16m
    ETIM 7.0 Key EC001180
    ETIM 8.0 Key EC001180
    ETIM 9.0 Key EC001180
