21/11/2024

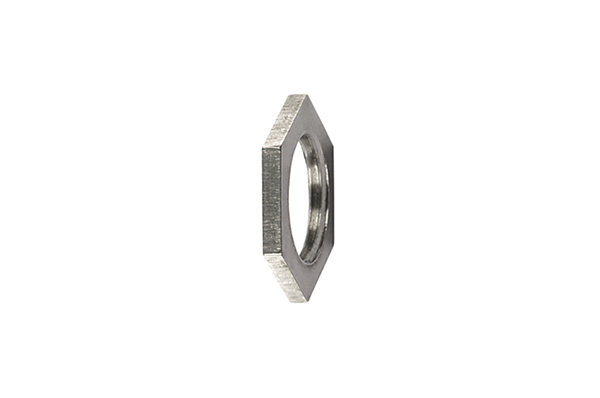

Nickel Plated Brass Locknuts PG21
Art.-No. 166-50114 | ALNPB-PG21-NPB-ML Details

Request your individual offer now

Application The ALNPB hexagonal locknut is used to secure fitting.
Colour Metal (ML)
Material Nickel Plated Brass (NPB)
PART DESCRIPTION ALNPB-PG21-NPB-ML
Pack Cont. 10pcs.
Package Content packed in Bag
Product Family ALNPB Nickel Plated Brass Locknuts
Product Group HelaGuard Accessories
Short Description Nickel Plated Brass Locknuts PG21
Thread type PG
Type ALNPB-PG21

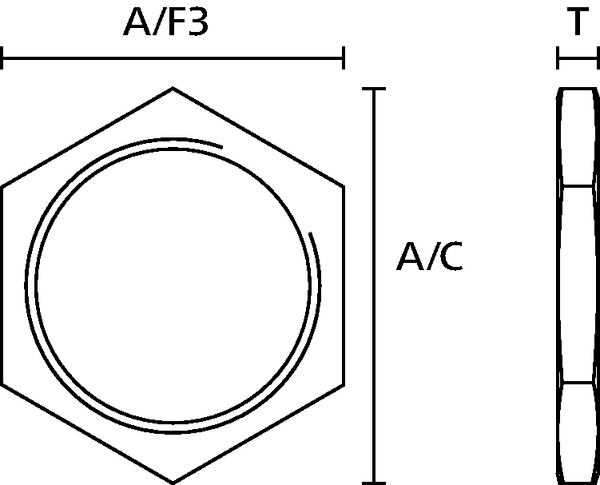

A/F Nut (A/F3) 33mm
Across Corners (A/C) 37mm
Thickness (T) 3.7
Thread Size PG21
Weight/Unit 0.008235kg
CAS Number 7439-92-1
CE Certification Yes
Critical Substance Lead in Copper alloy 4%
EC Number 231-100-4
ELV compliant Dir. Art. 4 (2) YES
Halogen-free Yes
Hazardous Goods No
Operating Temperature -100 °C to +300 °C
ROHS compliant Yes
Specifications
Country of Origin GB
Customs Number 74153300
GTIN-13 / EAN 4031026309774
Packaging 1 - Height (m) 0.005m
Packaging 1 - Length (m) 0.23m
Packaging 1 - Qty 10
Packaging 1 - Type Bag
Packaging 1 - Volume (m³) 0.00018
Packaging 1 - Weight (kg) 0.082351kg
Packaging 1 - Width (m) 0.16m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Type Carton
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Width (m) 0.267m
ETIM 7.0 Key EC000940
ETIM 8.0 Key EC000940
ETIM 9.0 Key EC000940
