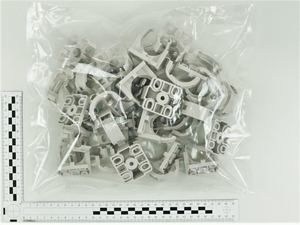

Accessory for IWS, grey, 20pcs. (CTCC-IWS29-MB43)
Art.-No. 169-22001
| CTCC-IWS29-MB43-PA66/6HIRHS-GY
|
Details

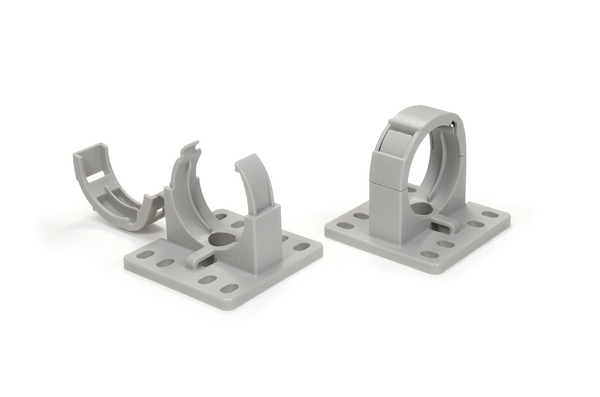

- Compatible with the IWS corrugated tubings
- Safe and fixe hold of the corrugated tubing

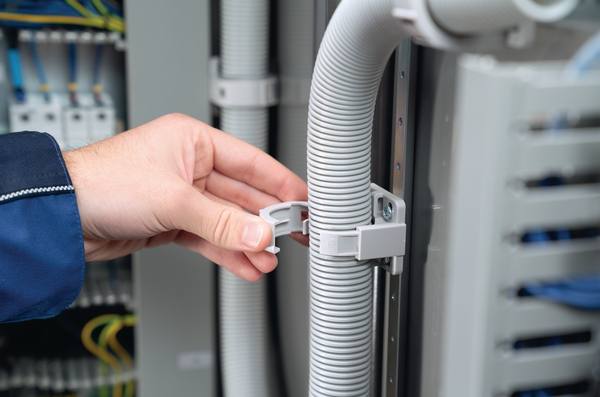

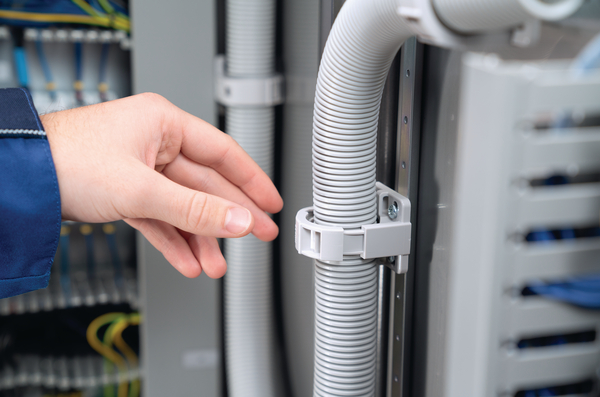

- Easy closing and reopening of the lid
- Cable tie holder on both sides
- Pre-fixation of the corrugated tubing in open status

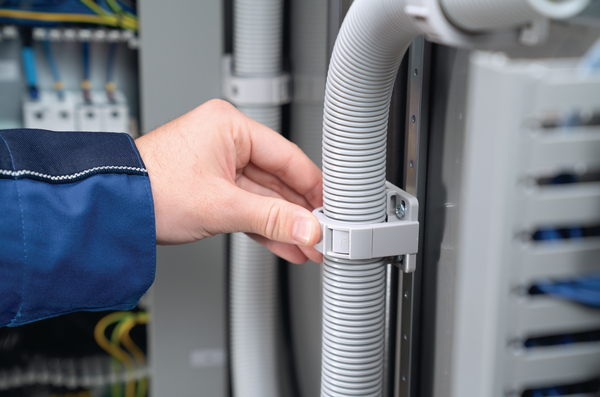

- Can be fixed with screws and matched to the mounting rails of the control cabinets
- Additional laying - a ground cable on the corrugated tubings possible (through recess in the cover)
- Self-extinguishing according to UL94 HB
Request your individual offer now
Request quote
More products in this product group:

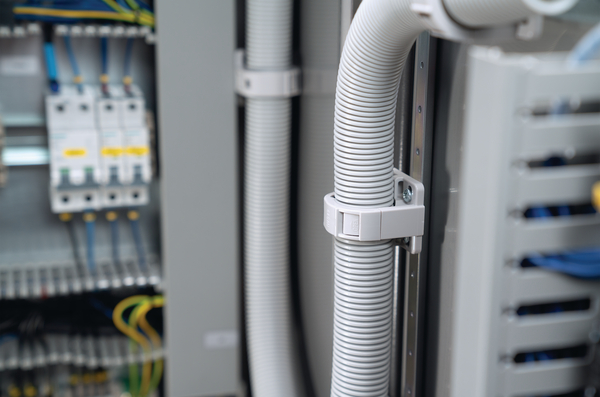

| Application | CTCC IWS corrugated tubing holders are used in the control cabinet for fastening and guiding. |
| Colour | Grey (GY) |
| Fixation Method | screw-hole |
| Material | Polyamide 6.6/6, high impact modified, heat stabilised (PA66/6HIRHS) |
| PART DESCRIPTION | CTCC-IWS29-MB43-PA66/6HIRHS-GY |
| Pack Cont. | 20pcs. |
| Package Content packed in | Bag |
| Product Family | CTCC IWS corrugated tubing holder |
| Product Group | Corrugated tubing holder |
| Short Description | CTCC IWS corrugated tubing holders |
| Type | CTCC-IWS29-MB43 |
Download
|
|
|
| Country of Origin | DE |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026638317 |
| Packaging 1 - Height (m) | 0.15m |
| Packaging 1 - Length (m) | 0.3m |
| Packaging 1 - Qty | 20 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.0117m³ |
| Packaging 1 - Weight (kg) | 0.297662kg |
| Packaging 1 - Width (m) | 0.26m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 240 |
| Packaging 3 - Type | Box |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 4.221944kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.164m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 4800 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.117m³ |
| Packaging 4 - Weight (kg) | 105.472kg |
| Packaging 4 - Width (m) | 0.8m |
IWS29
169-22291
CTCC-IWS17-MB43
169-22000
