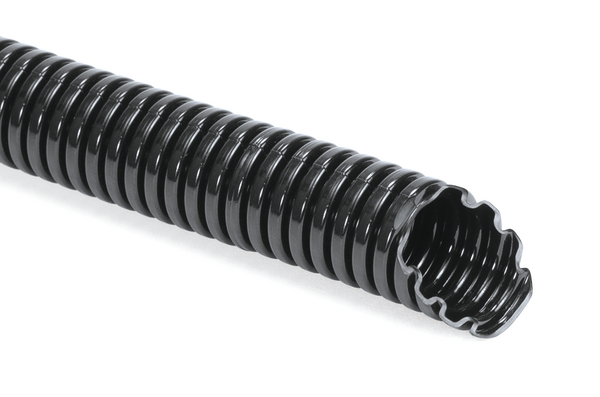

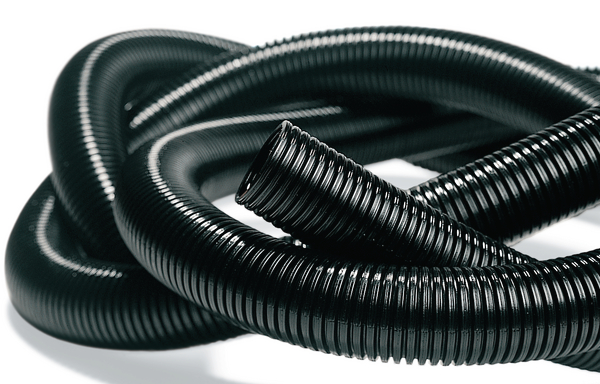

Flexible Convoluted Tubing OD=25.4 mm, ID=22 mm, 50 m, black
Art.-No. 169-22220
| IWS22-PA6-BK
|
Details
- Very good mechanical protection and abrasion resistance
- Highly flexible
- Good resistance to oils, fuels and solvents
- Self-extingushing according UL94HB and FMVSS 302
- Available as unslit and slit version
- UL approval for sizes 17-50 (not for slit version)
Request your individual offer now
Request quote
More products in this product group:
| Application | IWS corrugated flexible tubings are typically used to route and protect wiring in cars and commericial vehicles, control panels and machines. |
| Colour | Black (BK) |
| Key product features | abrasion resistant |
| Material | Polyamide 6 (PA6) |
| PART DESCRIPTION | IWS22-PA6-BK |
| Pack Cont. | 50m |
| Package Content packed in | metre |
| Product Family | IWS Polyamide 6 |
| Product Group | Non-Metallic Conduits |
| Short Description | Flexible Convoluted Tubing OD=25.4 mm, ID=22 mm, 50 m, black |
| Type | IWS22 |
Download
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 HB, FMVSS 302 |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Oil resistant | Yes |
| Operating Temperature | -40 °C to +120 °C |
| ROHS compliant | Yes |
| Specifications |
|
| Specifications | ANSI/UL 1696, csa-C22.2 No.227.3 |
| UL OCD link | Link |
| UL Recognized (US and Canada) | Yes |
| UL-File Number | E325250 |
| UV-Stabilised | No |
|
|
|
| Country of Origin | DE |
| Customs Number | 39173200 |
| GTIN-13 / EAN | 4031026192710 |
| Packaging 1 - Height (m) | 0.2m |
| Packaging 1 - Length (m) | 0.55m |
| Packaging 1 - Qty | 50 |
| Packaging 1 - Type | Reel |
| Packaging 1 - Volume (m³) | 0.0605m³ |
| Packaging 1 - Weight (kg) | 4.0kg |
| Packaging 1 - Width (m) | 0.55m |
| Packaging 3 - Height (m) | 0.736m |
| Packaging 3 - Length (m) | 1.2m |
| Packaging 3 - Qty | 500 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.7066m³ |
| Packaging 3 - Weight (kg) | 44.2kg |
| Packaging 3 - Width (m) | 0.8m |
| Packaging 4 - Height (m) | 0.88m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 500 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.845m³ |
| Packaging 4 - Weight (kg) | 65.2kg |
| Packaging 4 - Width (m) | 0.8m |
| Reel Length | 50m |
