FDN connectorised B length with basket and 24 LC PC duplex connectors
Art.-No. 857-00803
| FDNCT-BXBCDW1-LJ
|
Details
This product is not available anymore.
- Maximum 324 fibre splice capacity
- 58 round ports and 1 oval port
- Fibre storage basket for loop through applications
- Hellipse NZDF SE-A trays
- LC duplex of SC simplex adaptors
- Maximum 12 splices per tray without double stacking
- Splitter accommodation
- Cablelok compatible for all port sizes
- Quick release cover
- Optional flash test valve and/or grounding feed-through
Request your individual offer now
Request quote
More products in this product group:
Colour | Black (BK) |
Content |
FDN Base B-Length Cover (Dome) Quick Release Clamp Sealing ’O’ Ring Fibre Storage Basket Connector Plate LC Duplex or SC Simplex Adaptors 27 Hellipse NZDF SE-A Trays Tray Support Frame Anchor Fixing Kit (3) Tray Tool Hook and Loop Tray Securing Strap Transportation Tubing Tubefix – Tube to Tray Securing Blocks Hook and Loop Management Ties Isopropyl Alcohol Wipes Desiccant Installation Guide |
Cover Type | B |
Method of Sealing | Cablelok, Heatshrink |
PART DESCRIPTION | FDNCT-BXBCDW1-LJ |
Package Content packed in | kit |
Port | L, T, S, B, R |
Port count | 1, 2, 4, 2, 52 |
Product Family | B Length with 48 LC Ports and Basket |
Product Group | FDN Connectorised B Length with Basket |
Qty Trays | 27 |
Short Description | FDN connectorised B length with basket and 24 LC PC duplex connectors |

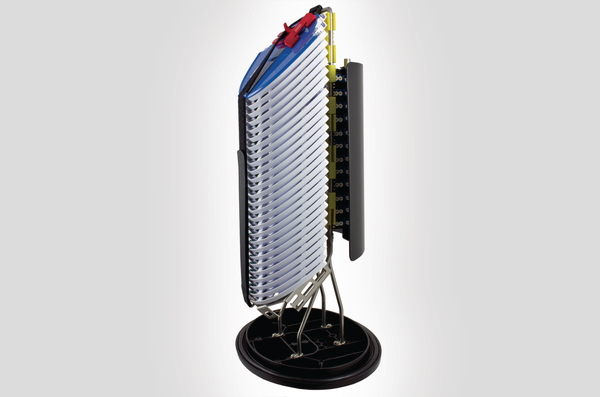

Technical Description | The FDN B Length closure with basket is supplied with a Polypropylene base. The base configuration of 58 round ports and 1 oval port covers a cable diameter range of 1.7 – 29.0mm when using Cablelok mechanical seals and 6.0 – 35.0mm when using heatshrink. The mounting system is manufactured from Grade 304 stainless steel and can accommodate up to 27 Hellipse NZDF SE-A trays with a maximum of 24 LC duplex or 24 SC simplex adaptors mounted in the connector plate for a maximum of 48 LC or 32 SC connectors. The connectorised closure and the position of the mounting system allow for ease of access and traceability of the fibre into the trays and the basket provides storage space for the storage of fibre loops. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system. |
Type | FDNCT-BXBCDW1-LJ |
Type of Tray | Hellipse NZDF SE-A |
