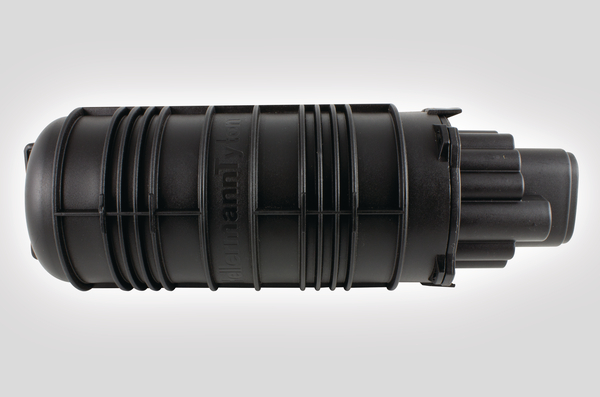

MRBU 30 Pair Closure
Art.-No. 857-10052
| MRBTB-AXXTXXX
|
Details
- Maximum 30 pair cable capacity

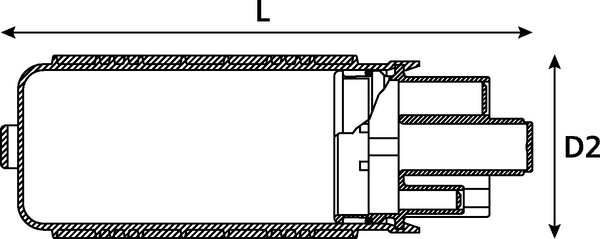

- Cover length of 310mm

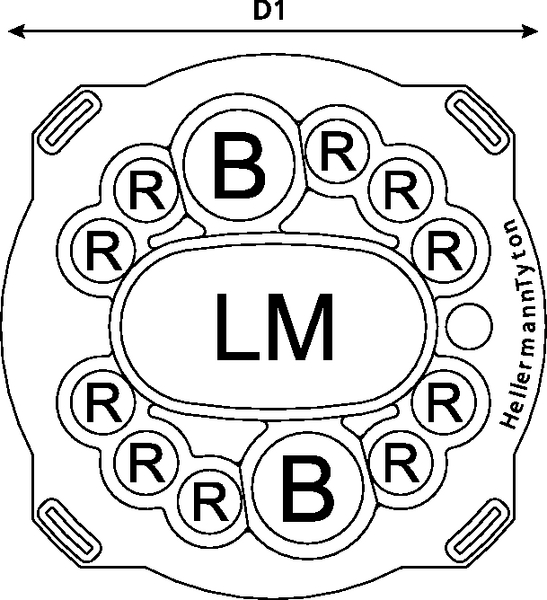

- 2 base configurations a 4 port and a 13 port which offer 3 or 12 round ports and 1 oval port
- Cablelok compatible for all port sizes
- Quick release cover
Request your individual offer now
Request quote
More products in this product group:
Content |
MRBU 13 or 4 Port Base A-Length Cover Quick Release Clamp Sealing 'O' Ring Desiccant Cable Ties |
Cover Type | A |
Method of Sealing | Cablelok, Heatshrink |
PART DESCRIPTION | MRBTB-AXXTXXX |
Package Content packed in | Box |
Port | LM, B, R |
Port count | 13 |
Product Group | MRBU 30 Pair Closure |
Technical Description | The MRBU closure is supplied with a polypropylene base. Two base configurations of 12 round ports and 1 oval port or 3 round ports and 1 oval port which cover a cable diameter of 1.7 - 16.5mm (for the 4 and 13 Port Base) when using Cablelok mechanical seals and 6.0 - 22.0mm when using heatshrink (for the 4 Port Base). The cover diameter and length and 110 x 310mm and each closure has a maximum capacity of 30 copper pairs. Note: Heatshrink can only be used with the 4 port version. |
Type | MRBTB-AXXTXXX |
