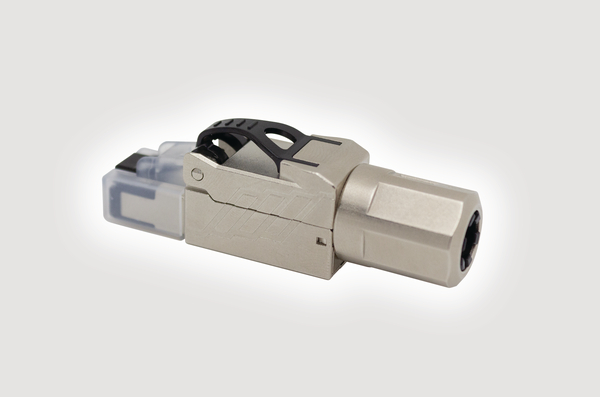

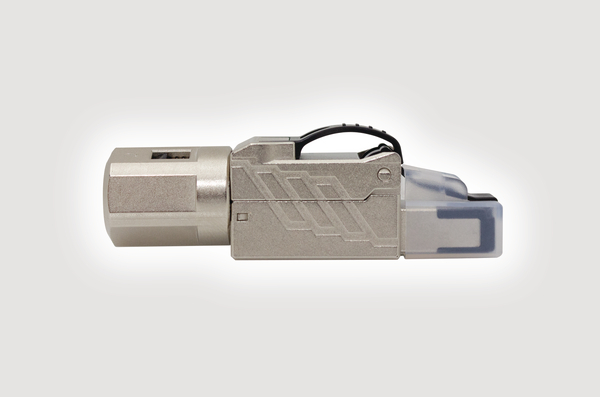

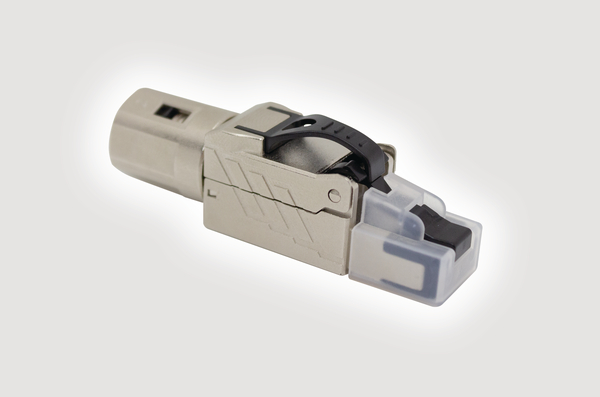

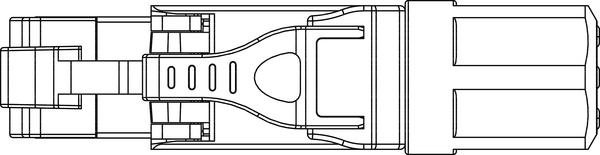

HTC Series CAT6A Field Termination Plug
Art.-No. 852-40015
| HTC-C6AS-MP12
|
Details
- 3rd party tested & verified - 3 connector MPTL
- Supports CAT6A 10G 500mhz
- Supports PoE++ type 4
- Plastic free packaging

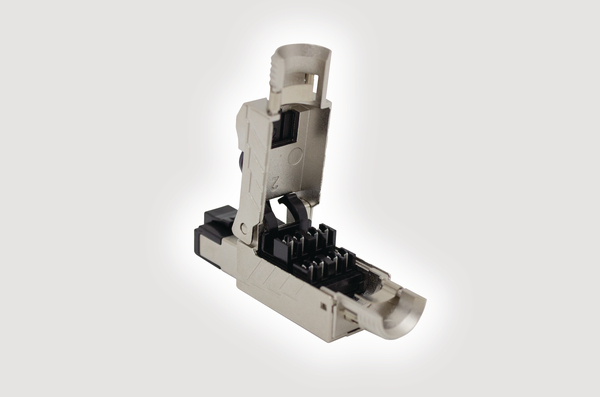

- Tool-Free Design
- Shielded to prevent Alien Crosstalk (AXT)
- Compatible with CAT6A shielded Cable
- Backwards Compatible with CAT6 Shielded & Unshielded Cable
Request your individual offer now
Request quote
More products in this product group:
| Colour | Zinc Plated Metal (BV) |
| Material | Zinc plated (ZN) |
| PART DESCRIPTION | HTC-C6AS-MP12 |
| Pack Cont. | 12 |
| Package Content packed in | Box |
| Performance Category | Category 6A (Class EA) |
| Product Family | RJ45 Shielded Tool-Free Plug |
| Product Group | HTC Series CAT6A Field Termination Plug |
| Short Description | HTC Series CAT6A Field Termination Plug |
| Technical Description | The HTC Series Category 6A Shielded Field Termination Plug has been designed to support today’s network infrastructure requirements including Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet), 10GBASE-T (10 Gigabit Ethernet) Voice over IP (VoIP). With greater demand for PoE implementation The HTC Series CAT6A Field Termination Plug has been configured to bolster todays PoE requirements, supporting the most up to date standards for PoE++ (Type 4) as described in IEEE 802.3bt. Field termination plugs are used to create Modular Plug Terminated Links (MPTL) on-site for direct connection to fixed location devices. 360° Shielding prevents alien crosstalk (AXT) and helps to dissipate any heat produced from PoE applications. The tool-free design allows for fast on-site termination without the need for any spcialized tools. In order to obtain the HellermanTyton 25 year system warranty MPTL’s must be correctly tested as per the ANSI/TIA-568.2-D standards. |
| Type | HTC-C6AS-MP12 |
