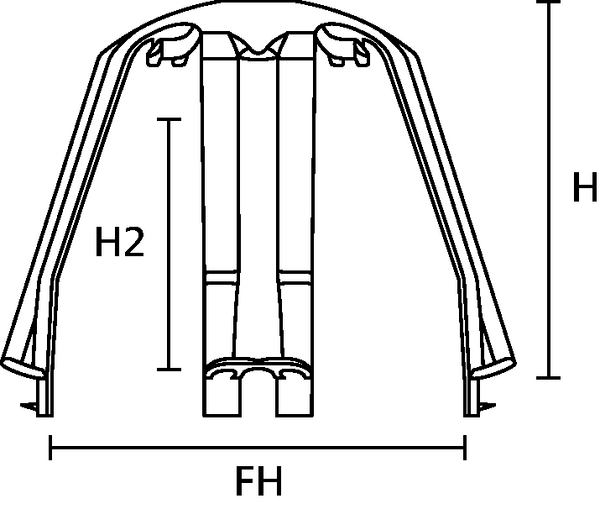

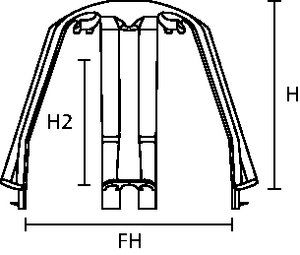

Downlight cover, H=82mm, ∅62 - 90 mm, black, 3pcs.
Art.-No. 148-00094
| SpotClip-I-PA66GF15-BK
|
Details
This product is not available anymore.
Alternative product available
- Mount down lights in dry, mortarless construction and acoustic construction

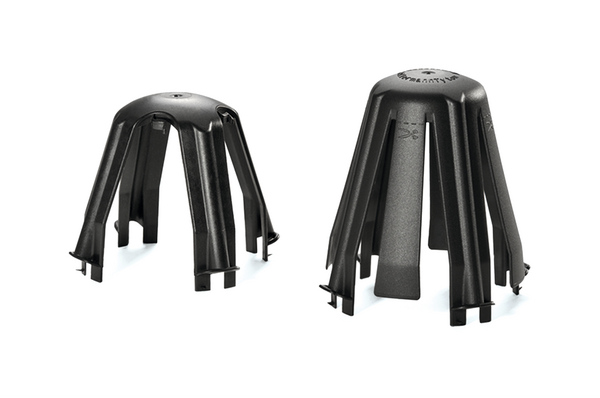

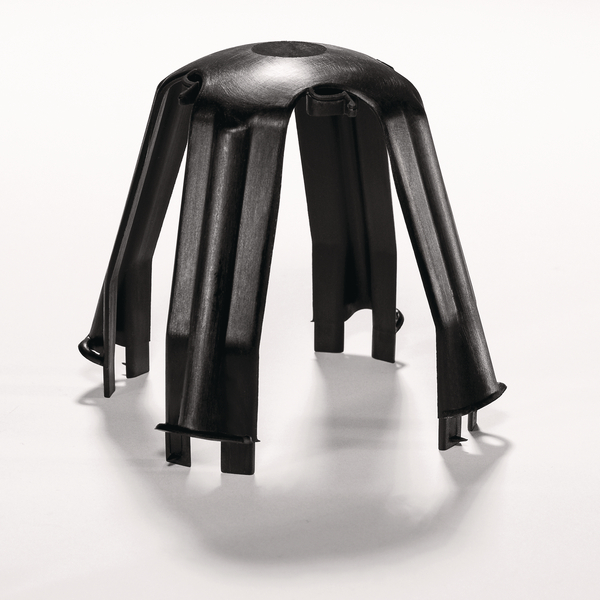

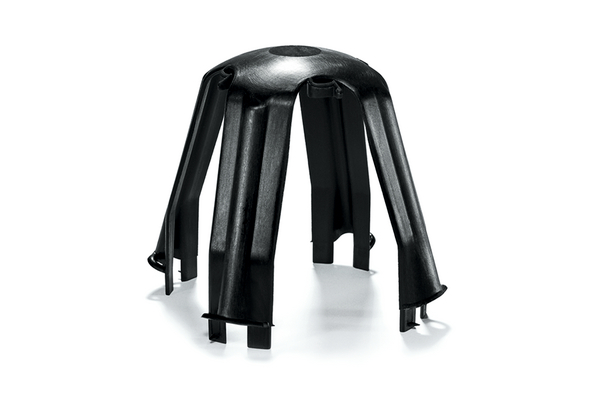

- Innovative, 4-leg ceiling spacer

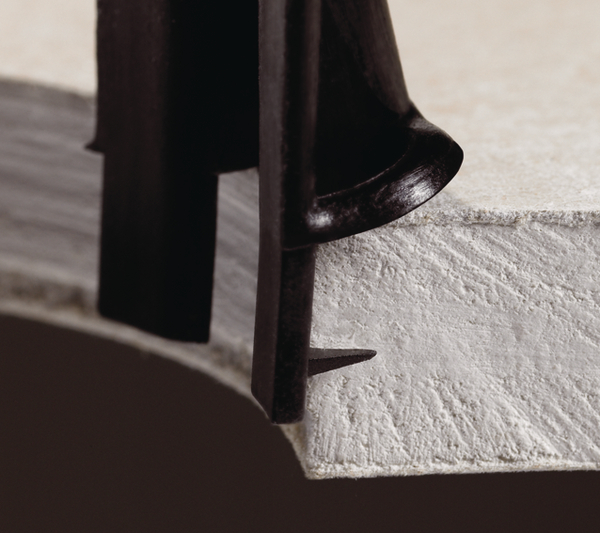

- Suitable for both panelling and plasterboard
- Non-flammable, fibreglass reinforced polyamide
- Thermal and mechanical benefits

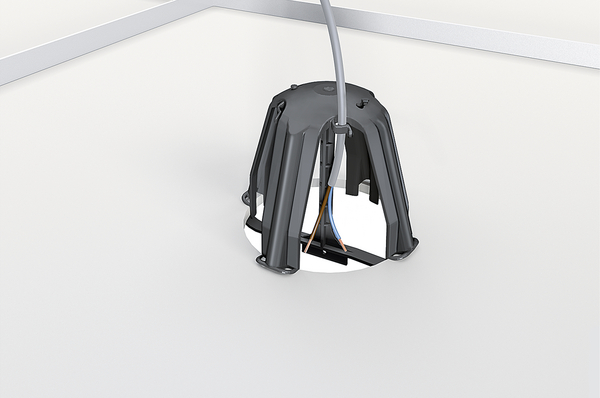

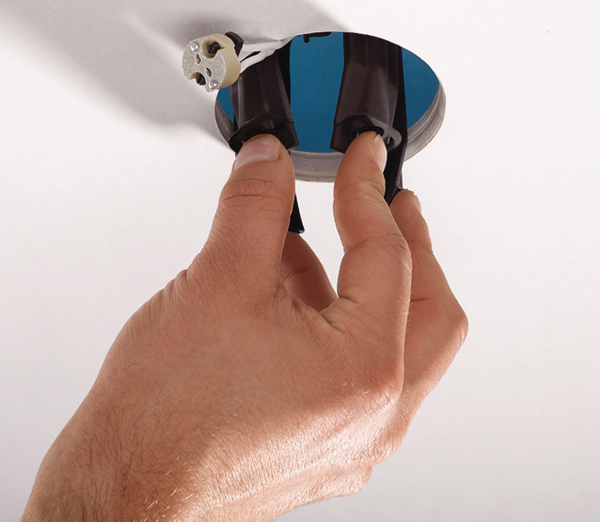

- Can be installed after construction, useful for both old and new buildings
- Use in ceiling cavities 62-90 mm in diameter

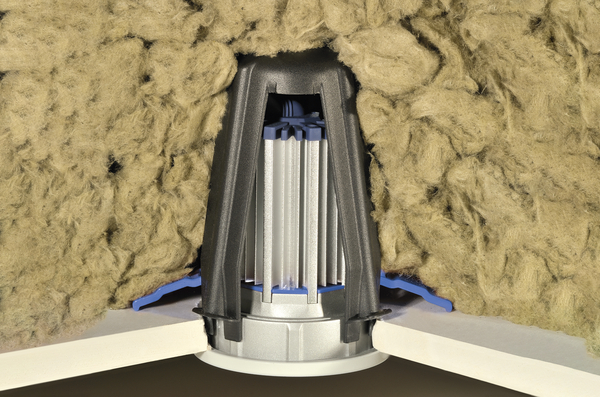

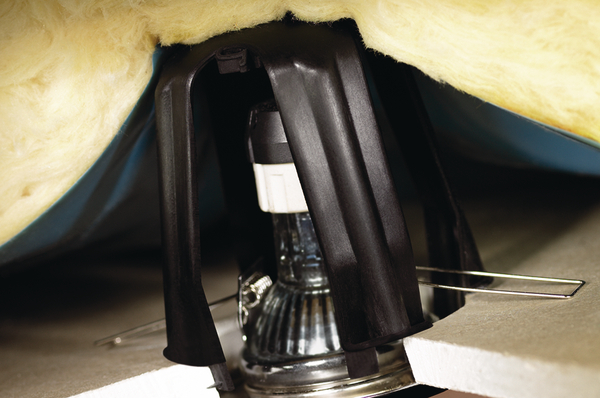

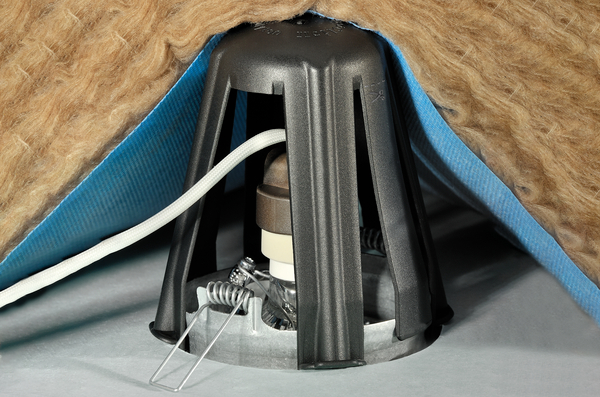

- Keeps safe distance between down light, insulation foil and roof insulation
- Reduces risk of damage to insulation from overheating, heat accumulation
- Improves life span and reliability of lamps
- Tested according to EN 60598-1, EN 60598-2-2, and NF C 15100
![](https://www.hellermanntyton.com/shared/speclogos/99593_All_Languages.jpg)
![](https://www.hellermanntyton.com/shared/speclogos/99595_All_Languages.jpg)
Request your individual offer now
Request quote
More products in this product group:

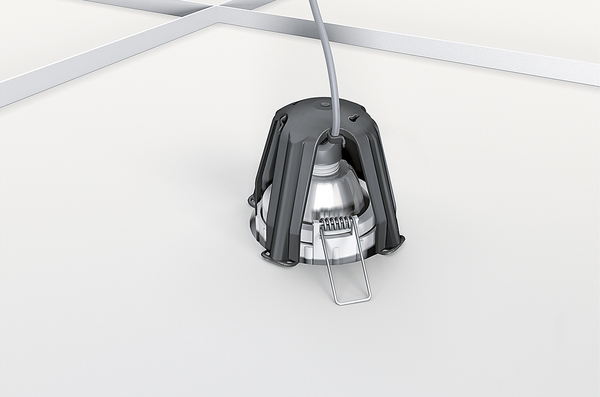

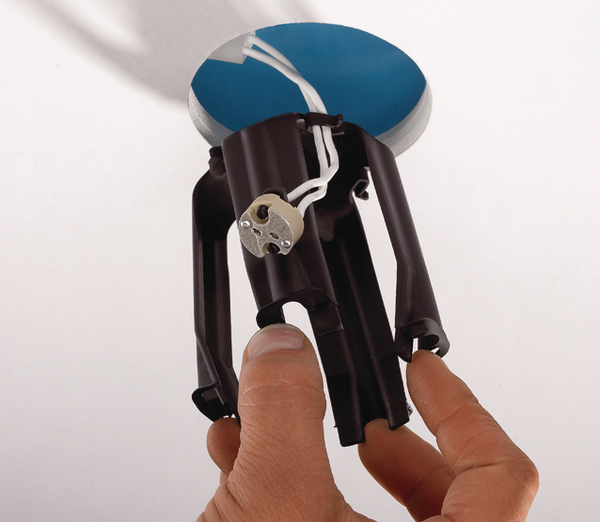

Application | SpotClip-I is a unique product that has been developed for mounting down lights in dry mortarless construction and acoustic construction applications. The innovative, 4-leg ceiling brace has a number of outstanding features and is suitable for use in both panelling and plasterboard. SpotClip-I consists of non-flammable, fibreglass reinforced polyamide and offers a number of thermal and mechanical benefits and can even be installed retrospectively. As a result, it opens up a variety of possibilities for applications in both old and new buildings. SpotClip-I can be used in ceiling cavities with diameters of 62 to 90 mm. SpotClip-I ensures that a safe distance is kept between the down light, insulation foil and roof insulation. It reduces the risk of damage being caused to any insulation material as a result of overheating and heat accumulation and may also have a positive effect on the life time of the lamp. |
Colour | Black (BK) |
Local order number | SPOTCLIP.PA66.BKX3 |
Material | Polyamide 6.6, glass-fibre reinforced (PA66GF15) |
PART DESCRIPTION | SpotClip-I-PA66GF15-BK |
Pack Cont. | 3pcs. |
Package Content packed in | pcs. |
Product Family | SpotClip-I |
Product Group | Downlight Covers - For Residential Buildings |
Short Description | Down light mounting device black for recessed spotlights with Ø 62-90mm black |
Type | SpotClip-I |
|
|
Country of Origin | FR |
Customs Number | 39269097 |
GTIN-13 / EAN | 4031026409788 |
Packaging 1 - Height (m) | 0.105m |
Packaging 1 - Length (m) | 0.27m |
Packaging 1 - Qty | 3 |
Packaging 1 - Type | Bag |
Packaging 1 - Volume (m³) | 0.00624m³ |
Packaging 1 - Weight (kg) | 0.107001kg |
Packaging 1 - Width (m) | 0.22m |
Packaging 3 - Height (m) | 0.171m |
Packaging 3 - Length (m) | 0.56m |
Packaging 3 - Qty | 45 |
Packaging 3 - Type | Box |
Packaging 3 - Volume (m³) | 0.0172m³ |
Packaging 3 - Weight (kg) | 1.825015kg |
Packaging 3 - Width (m) | 0.18m |

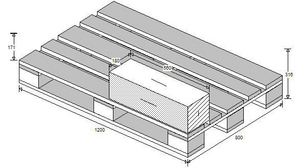

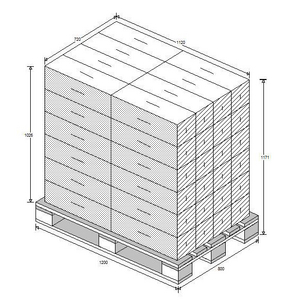

Packaging 4 - Height (m) | 1.17m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 2160 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 1.123m³ |
Packaging 4 - Weight (kg) | 108.6kg |
Packaging 4 - Width (m) | 0.8m |
