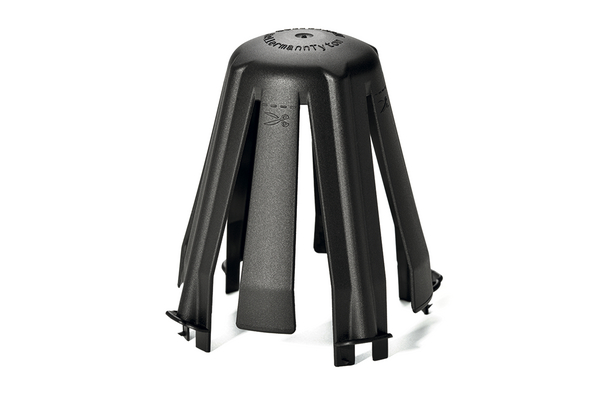

Downlight cover, H=107mm, ∅62 - 90 mm, black, 10pcs.
Art.-No. 148-00098
| SpotClip-II-PA66GF15-BK
|
Details

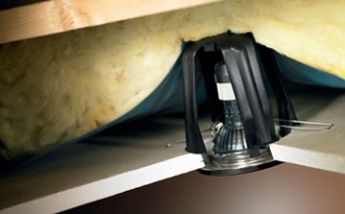

- SpotClip-II has been developed for bulbs up to 95 mm height

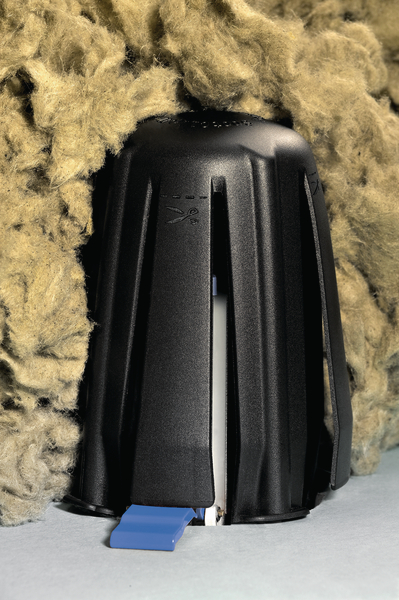

- Ensures safety distance between downlight, damp-proof foil and insulation material

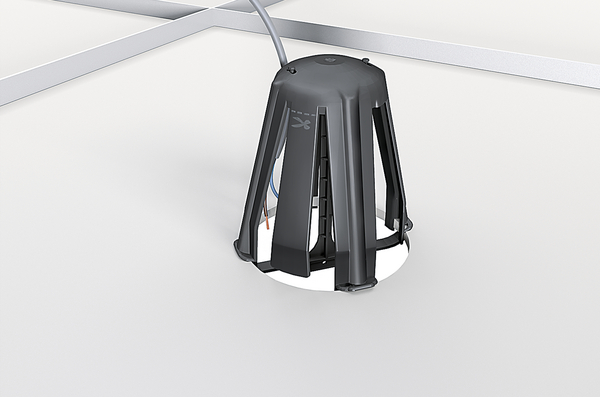

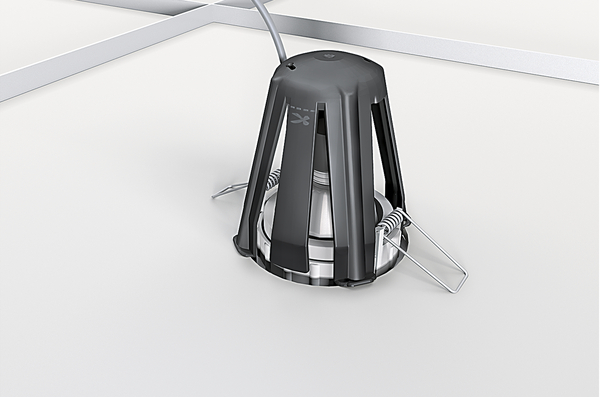

- Flexible installation during or after construction

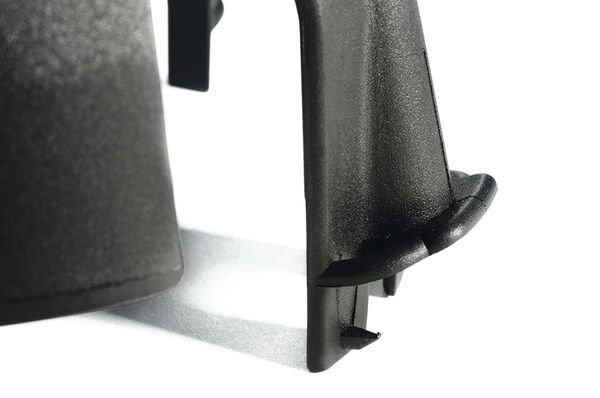

- Additional spikes at the end of the legs prevent SpotClip shifting
- Suitable for fixing into holes from 62 - 90 mm diameter
- Remains rigid even at higher temperatures
- Flame retardant material according to UL94-V0
- Improves life span and reliability of lamps
- Tested according to EN 60598-1, EN 60598-2-2, and NF C 15100
Request your individual offer now
Request quote
More products in this product group:
| Application | For diameters between 62 and 90 mm |
| Colour | Black (BK) |
| Local order number | SpotClip II |
| Material | Polyamide 6.6, glass-fibre reinforced (PA66GF15) |
| PART DESCRIPTION | SpotClip-II-PA66GF15-BK |
| Pack Cont. | 10pcs. |
| Package Content packed in | Bag |
| Product Family | SpotClip II |
| Product Group | Downlight Covers - For Residential Buildings |
| Short Description | Downlight Cover for recessed spotlights with Ø 62-90mm black |
| Type | SpotClip-II |
Download
|
|
|
| Country of Origin | FR |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026439525 |
| Minimum Order Quantity | 50 |
| Packaging 1 - Height (m) | 0.1m |
| Packaging 1 - Length (m) | 0.36m |
| Packaging 1 - Qty | 10 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00846m³ |
| Packaging 1 - Weight (kg) | 0.420601kg |
| Packaging 1 - Width (m) | 0.235m |
| Packaging 3 - Height (m) | 0.4m |
| Packaging 3 - Length (m) | 0.415m |
| Packaging 3 - Qty | 50 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0208m³ |
| Packaging 3 - Weight (kg) | 2.603kg |
| Packaging 3 - Width (m) | 0.125m |
| Packaging 4 - Height (m) | 0.964m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 1200 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.925m³ |
| Packaging 4 - Weight (kg) | 115.352kg |
| Packaging 4 - Width (m) | 0.8m |
