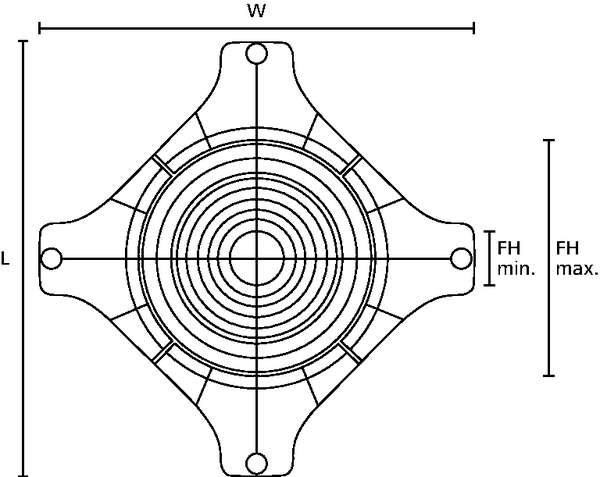

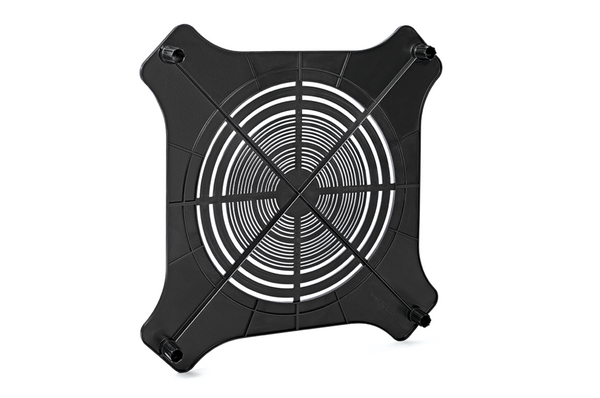

Downlight cover, L=592mm, W=592mm, H=35mm, ∅75 - 314 mm, black, 10pcs.
Art.-No. 148-00117
| SpotClip-Plate 600-PA66HS-BK
|
Details

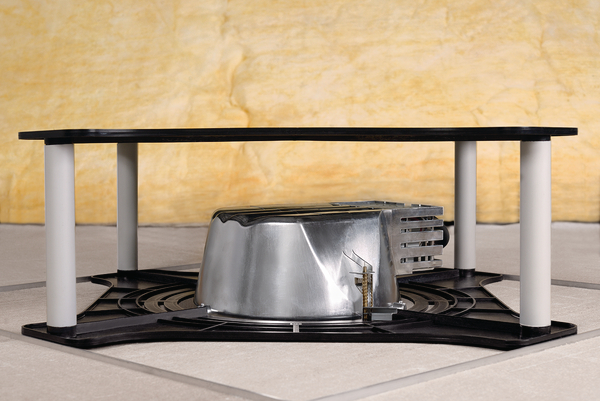

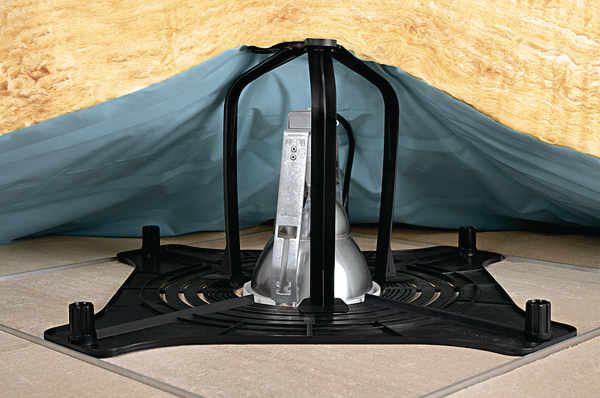

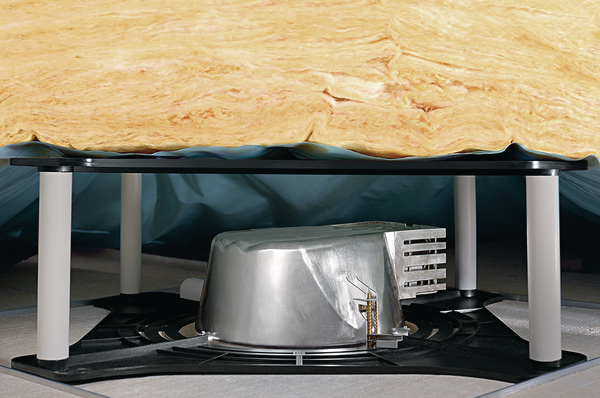

- SpotClip-Plate distributes the load of the downlight equally across the suspended ceiling construction
- Flexible installation during or after construction, useful for both existing and new buildings
- Remains rigid even at higher temperature
- Flame retardant material according to UL94-V2
- Improves life span and reliability of lamps
- Faster and easier installation and replacement of the lamp
- Tested according to EN 60598-1, EN 60598-2-2, and NF C 15100
Request your individual offer now
Request quote
More products in this product group:

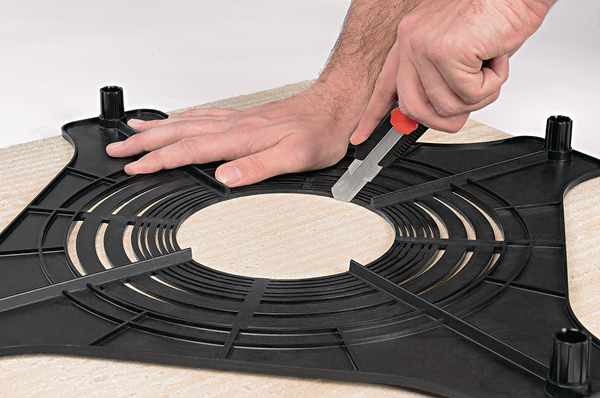

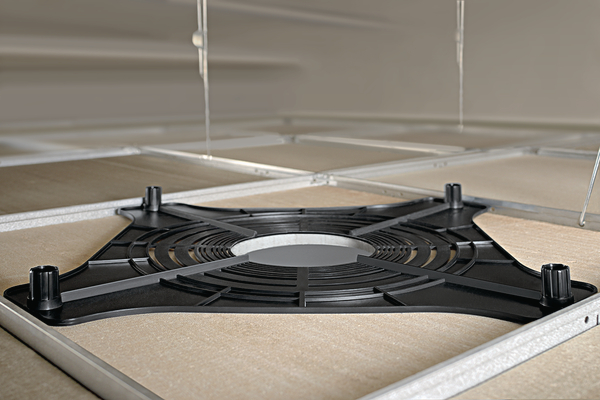

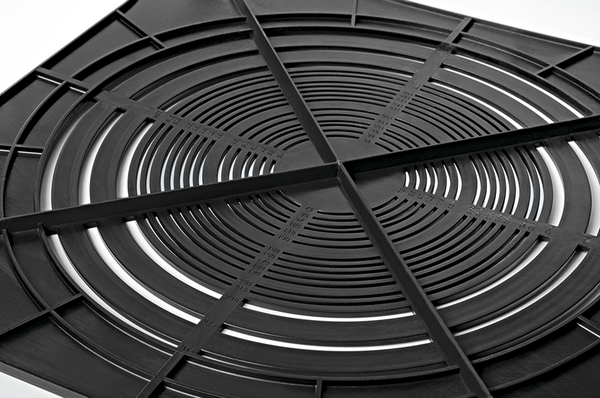

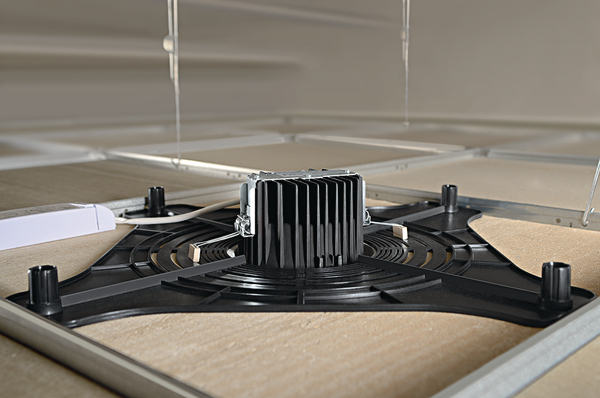

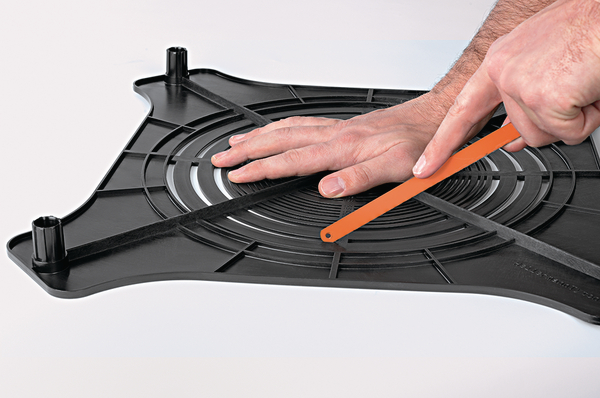

| Application | SpotClip-Plate has been developed especially for installation in suspended grid ceilings in order to avoid damage and cracks in the ceiling plates caused by the weight of heavy downlights. The product dimensions of 592 mm x 592 mm mean that it fits perfectly into standard grid ceilings with a width of 600 mm. The pre-cut design makes it suitable for installation of the most commonly used downlights with a diameter from 75 mm to 314 mm. Please check if your grid ceiling size corresponds to the side length of 600 mm. Depending on the manufacturer and country this can vary between 600 mm and 625 mm. |
| Colour | Black (BK) |
| Local order number | 148-00117 |
| Material | Polyamide 6.6, heat stabilised (PA66HS) |
| PART DESCRIPTION | SpotClip-Plate 600-PA66HS-BK |
| Pack Cont. | 10pcs. |
| Package Content packed in | Box |
| Product Family | SpotClip-Plate |
| Product Group | Downlight Covers - For Industrial Buildings |
| Short Description | Downlight Cover for recessed spotlights with Ø 75-314mm black |
| Type | SpotClip-Plate 600 |
Download
| ELV compliant Dir. Art. 4 (2) | YES |
| Flammability | UL 94 V2, Glow Wire Test (960 °C) |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C, (+105 °C for 500 h) |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Specifications |
|
| Suitable for high voltage luminaires | Yes |
| Suitable for low voltage luminaires (Yes/No) | Yes |
|
|
|
| Country of Origin | FR |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026470474 |
| Packaging 1 - Height (m) | 0.035m |
| Packaging 1 - Length (m) | 0.595m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | pcs. |
| Packaging 1 - Volume (m³) | 0.01239m³ |
| Packaging 1 - Weight (kg) | 0.531kg |
| Packaging 1 - Width (m) | 0.595m |
| Packaging 3 - Height (m) | 0.13m |
| Packaging 3 - Length (m) | 0.61m |
| Packaging 3 - Qty | 10 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0484m³ |
| Packaging 3 - Weight (kg) | 5.808kg |
| Packaging 3 - Width (m) | 0.61m |
| Packaging 4 - Height (m) | 1.185m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 80 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.138m³ |
| Packaging 4 - Weight (kg) | 67.464kg |
| Packaging 4 - Width (m) | 0.8m |
