Beading Edge Protection
Art.-No. 251-06107 | THA-032-PE-BK |  Details

    • Very flexible
    • Easy to apply
    • Protects cables from chafing on bulkheads
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads Datasheet
    Application PVC Beading strip is used to protect cables routed through sharp-edged cutout sections. It can also be used to provide an attractive finish to panel edges.
    Colour Black (BK)
    Description Protect cables and wires being passed through cutouts in panels.
    Material Polyethylene, adhesive (PE)
    PART DESCRIPTION THA-032-PE-BK
    Pack Cont. 20m
    Package Content packed in Box
    Product Family EdgeGuard
    Product Group Beading Edge Protection
    Type THA-032

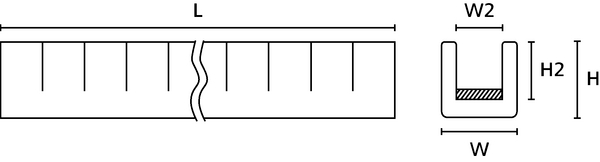

    Height (H) 5.2mm
    Height (H2) 4.0mm
    Length (L) 20m
    Wall (WT) 1.2mm
    Width (W) 5.3mm
    Width (W2) 3.2mm
    for Panel Thickness min - max - 3.2
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -20 °C to +50 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387960235
    ETIM 7.0 Key EC001937
    ETIM 8.0 Key EC001937
    ETIM 9.0 Key EC001937
