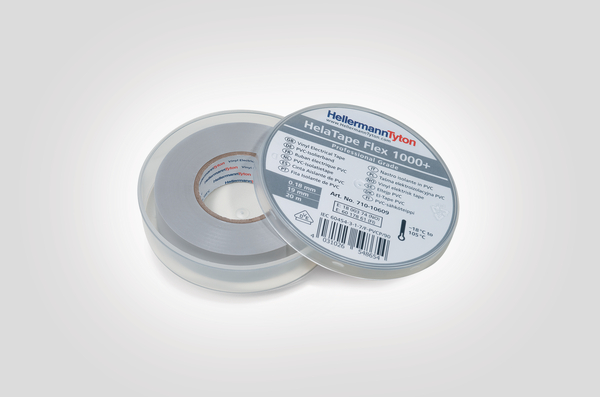

Premium Vinyl Electrical Tape 19mm x 20m grey
Art.-No. 710-10609
| HTAPE-FLEX1000+ C 19x20-PVC-GY
|
Details
- All-weather highly flexible, professional grade, self-adhesive vinyl electrical tape
- Excellent performance and durability over wide temperature range from -18°C to +105°C according to CSA C22.2
- VDE approved according to IEC 60454-3-1-7/F-PVCP/90
- Used for insulation, protection, fixing, maintenance, colour coding
- Pressure sensitive high quality rubber based adhesive
- Excellent resistance to abrasion, moisture, chemicals, corrosion and UV exposure
- Primary electrical insulation for all wire and cable splices up to 1 kV
- Protective jacketing for low, medium and high voltage splices and repairs
- Flame retardant according to UL 510 Standard
- For indoor and outdoor applications
- Size 19 mm x 20 m is single packed in a plastic can only 710-10601 comes in a pack of 10 pcs
Request your individual offer now
Request quote
More products in this product group:
| Application | Primary electrical insulation for all wire and cable splices up to 1 kV. Protective jacketing for low, high and medium voltage splices. Harnessing of wires and cables. Used for indoor and outdoor applications. |
| Colour | Grey (GY) |
| Material | Polyvinylchloride (PVC) |
| PART DESCRIPTION | HTAPE-FLEX1000+ C 19x20-PVC-GY |
| Pack Cont. | 20m |
| Package Content packed in | Reel |
| Product Family | HelaTape Flex 1000+ |
| Product Group | Vinyl Electrical Tapes – Premium Vinyl Electrical Tape |
| Short Description | Premium Vinyl Electrical Tape 19mm x 20m grey |
| Type | HTAPE-FLEX1000+ C 19x20 |
Download
| Adhesion to Backing | 2.7N/10 mm |
| Adhesion to Steel | 3.0N/10 mm |
| Breaking Strength | 35N/10 mm |
| Dielectric Strength | 45kV/mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Elongation at break | 300 % |
| Hazardous Goods | No |
| Insulating (Yes/No) | Yes |
| Operating Temperature | -18 °C to +105 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Shelf Life | 5 years |
| Specifications |
|
| Specifications | IEC 60454-3-1-7/F-PVCP/90, UL 510 |
| Suitable for high voltage (Yes/No) | No |
| Tensile Strength | 35N/mm² |
| UL OCD link | Link |
| UL-File Number | E490183 |
| UV-Stabilised | Yes |
|
|
|
| Country of Origin | CN |
| Customs Number | 39191012 |
| GTIN-13 / EAN | 4031026548654 |
| Packaging 1 - Height (m) | 0.022m |
| Packaging 1 - Length (m) | 0.095m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | Reel |
| Packaging 1 - Volume (m³) | 0.0002m³ |
| Packaging 1 - Weight (kg) | 0.0923kg |
| Packaging 1 - Width (m) | 0.095m |
| Packaging 3 - Height (m) | 0.24m |
| Packaging 3 - Length (m) | 0.405m |
| Packaging 3 - Qty | 80 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0204m³ |
| Packaging 3 - Weight (kg) | 7.884kg |
| Packaging 3 - Width (m) | 0.21m |
| Packaging 4 - Height (m) | 1.104m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 2240 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.06m³ |
| Packaging 4 - Weight (kg) | 241.752kg |
| Packaging 4 - Width (m) | 0.8m |
| Reel Length | 20m |
| Storage Temperature | +23 °C |
| Storage conditions | 65% relative humidity. |
