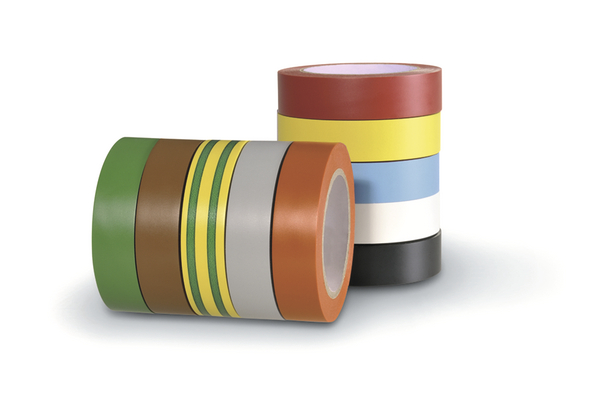

PVC Electrical Insulation Tape 15mm x 10m colour mix
Art.-No. 710-00146
| HTAPE-FLEX15-15x10-PVC-MIX
|
Details
- Vinyl electrical tape in many different colours
- Used for insulation, protection, fixing, maintenance, colour coding and more
- Good resistance to abrasion, sunlight, moisture, chemicals and varying weather conditions
- Highly flexible with outstanding adhesion performance
- Harnessing of wires and cables
- Suitable for mechanical and electrical applications up to 1 kV
- VDE approved according to IEC 60454-3-1-6/F-PVCP/90
- Flame retardant according to IEC 60454-2
Request your individual offer now
Request quote
More products in this product group:
| Application | Primary electrical insulation for all wire and cable splices up to 1kV. Protective jacketing for low, high, and medium voltage splices. Harnessing of wires and cables. Used for indoor and outdoor applications. |
| Colour | Red (RD), Grey (GY), Yellow (YE), Green (GN), Blue (BU), Orange (OG), White (WH), Brown (BN), Black (BK), Green-Yellow (GNYE) |
| Material | Polyvinylchloride (PVC) |
| PART DESCRIPTION | HTAPE-FLEX15-15x10-PVC-MIX |
| Pack Cont. | 10m |
| Package Content packed in | Pack |
| Product Family | HelaTape Flex 15 |
| Product Group | Vinyl Electrical Tapes – Commercial Grade Vinyl Electrical Tape |
| Short Description | PVC Electrical Insulation Tape 15mm x 10m colour mix |
| Type | HTAPE-FLEX15-15x10 |
Download
| Adhesion to Backing | 2.0N/10 mm |
| Adhesion to Steel | 2.2N/10 mm |
| Breaking Strength | 28N/10 mm |
| Dielectric Strength | 45kV/mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Elongation at break | 200 % |
| Hazardous Goods | No |
| Insulating (Yes/No) | Yes |
| Nato number | 5970-12-411-5047 |
| Operating Temperature | -10 °C to +90 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Shelf Life | 5 years |
| Specifications |
|
| Specifications | IEC 60454-3-1-6/F-PVCP/90 |
| Suitable for high voltage (Yes/No) | No |
| Tensile Strength | 19.5N/mm² |
|
|
|
| Country of Origin | CN |
| Customs Number | 39191012 |
| GTIN-13 / EAN | 4031026448169 |
| Packaging 1 - Height (m) | 0.155m |
| Packaging 1 - Length (m) | 0.06m |
| Packaging 1 - Qty | 10 |
| Packaging 1 - Type | Pack |
| Packaging 1 - Volume (m³) | 0.00056m³ |
| Packaging 1 - Weight (kg) | 0.345kg |
| Packaging 1 - Width (m) | 0.06m |
| Packaging 3 - Height (m) | 0.16m |
| Packaging 3 - Length (m) | 0.325m |
| Packaging 3 - Qty | 100 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0065m³ |
| Packaging 3 - Weight (kg) | 3.569kg |
| Packaging 3 - Width (m) | 0.125m |
| Packaging 4 - Height (m) | 0.944m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 9000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.906m³ |
| Packaging 4 - Weight (kg) | 342.21kg |
| Packaging 4 - Width (m) | 0.8m |
| Storage Temperature | +23 °C |
| Storage conditions | 65% relative humidity. |
