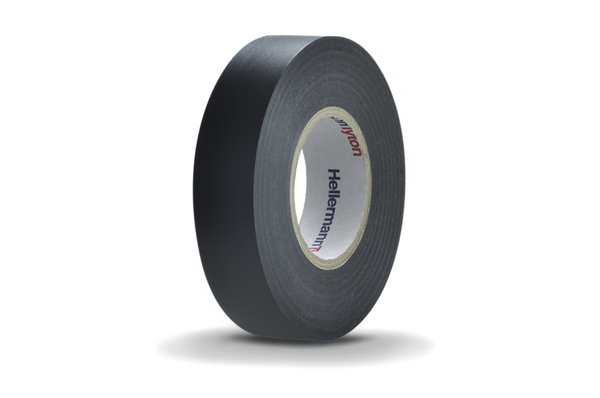

PVC Electrical Insulation Tape 19mm x 20m black
Art.-No. 710-00300
| HTAPE-FLEX20-19x20-PVC-BK
|
Details
This product is not available anymore.
Alternative product available
- 0.20mm thick PVC tape with special high level adhesive
- Suitable for mechanical and electrical applications up to 600 Volt
- Additional thickness for quicker layering and higher abrasion resistance
- Flame retardant
Request your individual offer now
Request quote
More products in this product group:
| Application | Primary electrical insulation for all wire and cable splices up to 1 kV. Protective jacketing for low, medium and high voltage splices. Wrapping of wire harnesses and cables. Used for indoor and outdoor applications. |
| Colour | Black (BK) |
| Material | Polyvinylchloride (PVC) |
| PART DESCRIPTION | HTAPE-FLEX20-19x20-PVC-BK |
| Pack Cont. | 1m |
| Package Content packed in | Reel |
| Product Family | HelaTape Flex 20 |
| Product Group | Vinyl Electrical Tapes – Insulating Tape for Higher Mechanical Requirements |
| Short Description | PVC Electrical Insulation Tape 19mm x 20m black |
| Type | HTAPE-FLEX20-19x20 |
Download
| Adhesion to Backing | 2.2N/10 mm |
| Adhesion to Steel | 2.4N/10 mm |
| Breaking Strength | 40N/10 mm |
| Dielectric Strength | 40kV/mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Elongation at break | 240 % |
| Hazardous Goods | No |
| Insulating (Yes/No) | Yes |
| Operating Temperature | -10 °C to +90 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Shelf Life | 5 years |
| Specifications |
|
| Specifications | VDE |
| UV-Stabilised | Yes |
| Country of Origin | ES |
| Customs Number | 39191012 |
| GTIN-13 / EAN | 4031026402093 |
| Packaging 1 - Height (m) | 0.18m |
| Packaging 1 - Length (m) | 0.431m |
| Packaging 1 - Qty | 4 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.01722m³ |
| Packaging 1 - Weight (kg) | 0.384kg |
| Packaging 1 - Width (m) | 0.222m |
| Packaging 2 - Qty | 60 |
| Packaging 2 - Type | Carton |
| Packaging 2 - Weight (kg) | 5.76kg |
| Storage Temperature | +23 °C |
| Storage conditions | 65% relative humidity. |
HTAPE-FLEX20-19x20
710-10300
