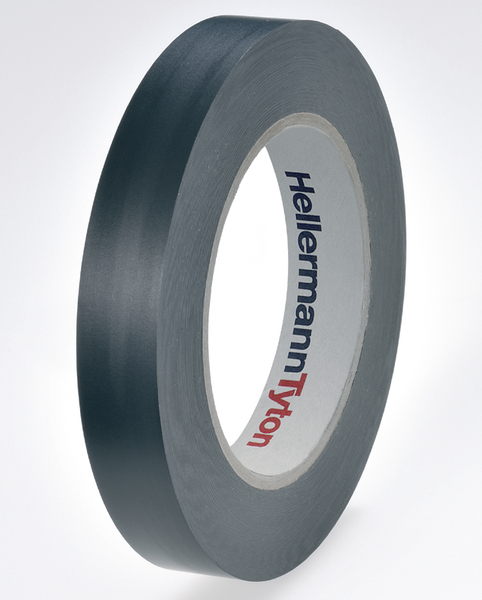

PVC Electrical Insulation Tape 19mm x 33m black
Art.-No. 710-00401
| HTAPE-FLEX23-19x33-PVC-BK
|
Details
This product is not available anymore.
Alternative product available
- Special high level adhesive
- Flame retardant
- Suitable for mechanical and electrical applications up to 600 volts
- Additional thickness for quicker build-up and added abrasion resistance
Request your individual offer now
Request quote
More products in this product group:
| Application | Primary electrical insulation for all wire and cable splices up to 1 kV. Protective jacketing for low, medium and high voltage splices. Wrapping of wire harnesses and cables. Used for indoor and outdoor applications. |
| Colour | Black (BK) |
| Material | Polyvinylchloride (PVC) |
| PART DESCRIPTION | HTAPE-FLEX23-19x33-PVC-BK |
| Pack Cont. | 1m |
| Package Content packed in | Reel |
| Product Family | HelaTape Flex 23 - Insulating Tape for Higher Mechanical Requirements |
| Product Group | HelaTape Flex - Vinyl Electrical Tapes |
| Short Description | PVC Electrical Insulation Tape 19mm x 33m black |
| Type | HTAPE-FLEX23-19x33 |
Download
| Adhesion to Backing | 3.8N/10 mm |
| Adhesion to Steel | 4.0N/10 mm |
| Breaking Strength | 45N/10 mm |
| Dielectric Strength | 48kV/mm |
| ELV compliant Dir. Art. 4 (2) | YES |
| Elongation at break | 240% |
| Hazardous Goods | No |
| Insulating (Yes/No) | Yes |
| Operating Temperature | +105 °C |
| ROHS compliant | Yes |
| Self extinguishing | Yes |
| Specifications |
|
| Specifications | VDE |
| Suitable for high voltage (Yes/No) | No |
| UV-Stabilised | Yes |
| Country of Origin | ES |
| Customs Number | 39191012 |
| GTIN-13 / EAN | 4031026402116 |
| Packaging 1 - Height (m) | 0.019m |
| Packaging 1 - Length (m) | 0.122m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | Bag |
| Packaging 1 - Volume (m³) | 0.00028m³ |
| Packaging 1 - Weight (kg) | 0.2kg |
| Packaging 1 - Width (m) | 0.122m |
| Packaging 3 - Height (m) | 0.105m |
| Packaging 3 - Length (m) | 0.39m |
| Packaging 3 - Qty | 56 |
| Packaging 3 - Type | Carton |
| Packaging 3 - Volume (m³) | 0.0152m³ |
| Packaging 3 - Weight (kg) | 11.7kg |
| Packaging 3 - Width (m) | 0.37m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 2352 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Weight (kg) | 512.4kg |
| Packaging 4 - Width (m) | 0.8m |
